Producing accurate solid geometry drawings is a fundamental skill for civil engineers in Kenya, essential for visualizing complex structures and components before construction. These drawings enable professionals to represent three-dimensional objects on two-dimensional media, facilitating effective communication and error minimization on site. Mastery of surface development interpretation is crucial as it bridges the gap between conceptual design and practical fabrication, especially in projects involving complex curved surfaces such as water tanks, silos, and roof domes.

3.1 Interpretation of Surface Development

Surface development is a critical aspect of technical drawing that involves unfolding a three-dimensional solid into a flat pattern. This process allows civil engineers to understand and produce the shapes necessary for fabrication and construction, particularly for components with curved or irregular surfaces.

3.1.1 Definition and significance of surface development

Surface development is the process of creating a two-dimensional representation of a three-dimensional solid’s surface by unfolding or flattening it without distortion. This technique is essential in civil engineering for producing accurate templates that guide the cutting and shaping of construction materials such as sheet metal, plywood, or concrete formwork.

Definition of surface development

• Unfolding of solids: It involves mathematically or graphically “unfolding” a solid’s surfaces into a flat plane while maintaining true dimensions and shapes.
• Maintaining dimensions: The development ensures that the lengths and angles on the surface remain true, preventing errors during fabrication.
• Applicable to various solids: Surface development applies to regular solids like prisms and cylinders, as well as irregular solids such as cones and pyramids.
• Two-dimensional output: The end product is a flat layout or pattern used to cut or fabricate materials accurately.
• Foundation for fabrication: It serves as a blueprint for construction workers and fabricators, ensuring that parts fit perfectly when assembled.

Significance in civil engineering practice

• Facilitates accurate fabrication: Enables precise cutting and shaping of materials, reducing waste and rework on construction sites.
• Improves communication: Provides a clear, visual method for conveying complex shapes to contractors and fabricators.
• Supports quality control: Allows for verification of dimensions before actual construction, minimizing costly errors.
• Essential for curved structures: Critical in projects involving curved roofing, tanks, or silos where flat patterns are needed for material preparation.
• Enhances design feasibility: Helps engineers and architects assess the practicality of designs by visualizing how surfaces unfold.

3.1.2 Standard conventions for representation

Standard conventions in surface development ensure consistency and clarity in technical drawings across the Kenyan civil engineering sector, aligning with BS and ISO standards. These conventions guide how lines, symbols, and annotations are used to represent developed surfaces accurately.

Line types and their meanings

• Visible outlines: Thick continuous lines represent edges visible in the developed surface.
• Hidden edges: Thin dashed lines indicate edges not visible in the development but important for reference.
• Fold lines: Thin chain lines or dash-dot lines show where the surface folds or bends.
• Cutting lines: Thick continuous lines marked distinctly to indicate where the material is to be cut.
• Dimension lines: Thin continuous lines with arrowheads, used to specify lengths and angles on the developed pattern.

Scale and dimensioning conventions

• Use of standard scales: Common scales include 1:1 for actual size or reduced scales like 1:2 for larger objects, following BS EN ISO 5455.
• Dimension placement: Dimensions are placed outside the object outline to avoid clutter and ensure readability.
• Units: Dimensions are expressed in millimetres (mm) as per Kenyan engineering practice.
• Angles: Angles are denoted with a degree symbol (°) and placed near the angle’s vertex.
• Annotations: Use of clear, concise text conforming to ISO 3098 for lettering style and size.

Title blocks and notes

• Title block content: Includes project name, drawing title-scale, date, drafter’s name, and revision number, following BS ISO 7200.
• Material specifications: Notes on material type and thickness are often included to guide fabrication.
• Surface finish: Indications of surface texture or treatment may be added where relevant.
• Orientation symbols: Arrows or symbols showing the direction of development or unfolding.
• Revision history: Space to record changes ensuring traceability of updates.

3.1.3 Examples of surface development

Understanding practical examples of surface development helps civil engineers apply theoretical knowledge to real-world projects. This section examines common solids encountered in civil engineering and their surface developments.

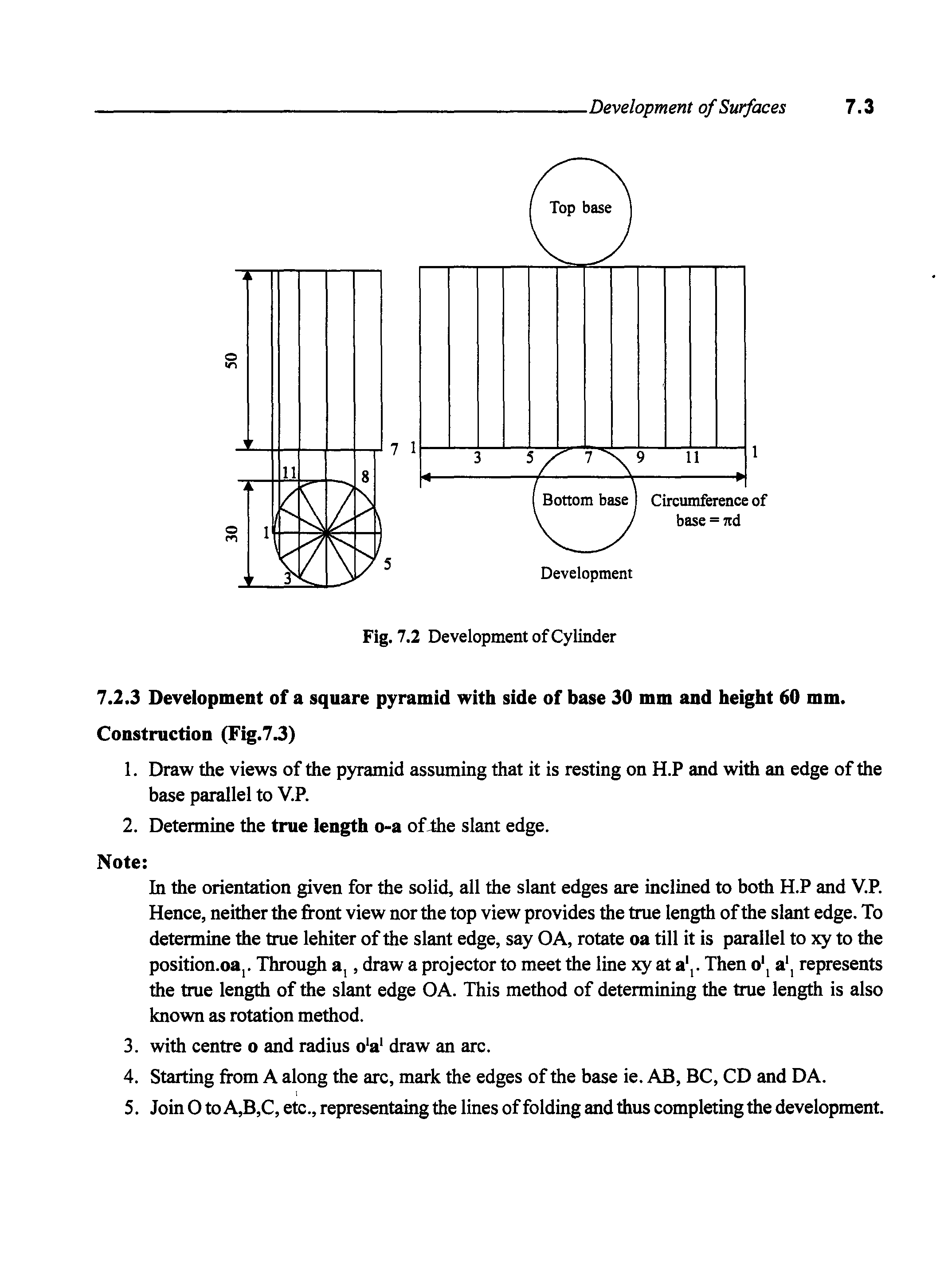

Development of a cylinder

• The cylinder is common in water tanks and silos.
• Development involves unrolling the curved surface into a rectangle whose length equals the circumference of the base.
• The two circular ends are represented as separate circles equal to the base diameter.
• The rectangle’s height corresponds to the cylinder height.
• This development ensures accurate fabrication of cylindrical sheets for tanks or pipes.

Development of a cone

• Cones appear in roof domes or funnel-shaped structures.
• The curved surface is developed as a sector of a circle, with the radius equal to the slant height.
• The arc length of the sector equals the circumference of the cone base.
• The base is represented by a separate circle matching the cone’s base diameter.
• This layout guides accurate cutting of sheet materials for conical roofs or spouts.

Development of a prism

• Prisms are found in beams and structural supports.
• The lateral surfaces are developed as rectangles corresponding to each face’s dimensions.
• The bases are represented as polygons identical to the prism’s cross-section.
• The development involves “unfolding” the prism’s faces into one flat pattern.
• This method is used to prepare formwork or metal sheets for structural elements.

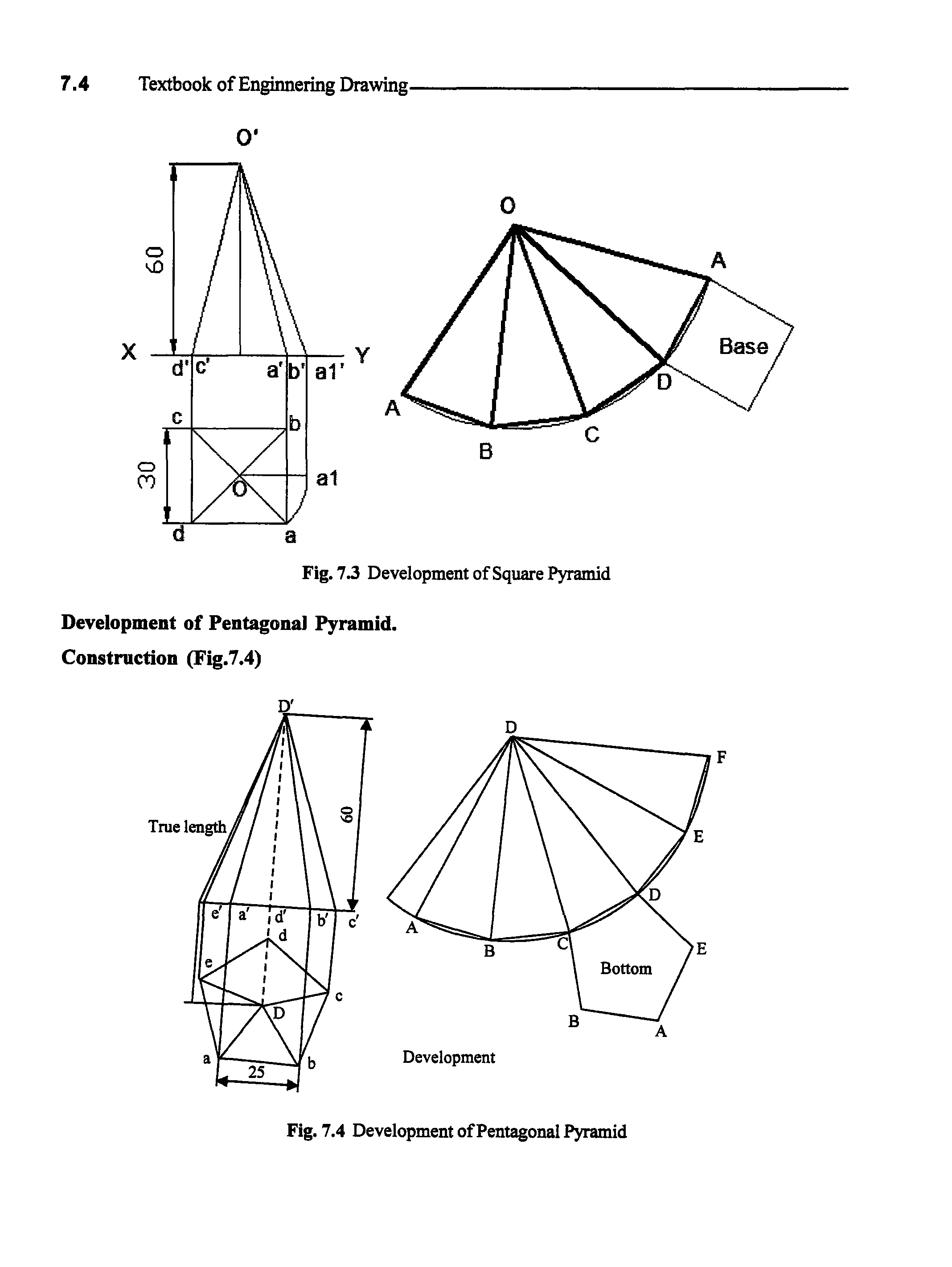

Development of a pyramid

• Pyramidal shapes are used in architectural features and roof designs.
• The lateral surfaces are triangular and developed by projecting each face flat while maintaining true lengths.
• The base is a polygon representing the pyramid’s footprint.
• The development ensures that each triangular face fits precisely when cut and assembled.
• This technique is crucial in creating complex roof trusses or decorative structures.

Chapter Summary
