Technical drawing is a fundamental skill for civil engineering professionals in Kenya, enabling clear communication of design intent, construction details, and specifications. Accurate plane geometry drawings form the foundation for site layout, structural elements, and infrastructure components. Mastery of drawing lines and their conventions ensures that engineers, architects, contractors, and regulators interpret drawings consistently, reducing errors and enhancing project efficiency.

2.1 Identification of Drawing Lines (TD)

Drawing lines are the visual language of technical drawings. In civil engineering, different types of lines convey distinct information such as visible edges, hidden elements, centres, and cutting planes. Understanding line types and their correct application according to Kenyan and international standards is essential for producing professional drawings that comply with BS 8888 and ISO 128 conventions.

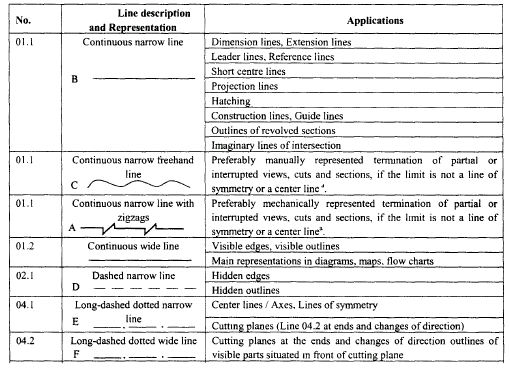

2.1.1 Types of lines and their meanings

Civil engineering drawings employ a variety of line types, each serving a specific communicative purpose. These lines are standardized to ensure universal understanding among professionals working on projects such as road designs, bridges, and building layouts.

Visible or Object Lines

• Represent the edges and outlines of objects that are visible in the current view.
• Typically drawn as continuous thick lines to emphasize their importance.
• Used to define the shape and form of structural components like beams and columns.
• Essential for showing the final constructed elements in plans and elevations.
• In Kenyan civil projects, these lines help contractors visualize finished works clearly.

Hidden Lines

• Indicate edges or surfaces that are not visible from the current viewpoint.
• Drawn as short dashed lines, usually thinner than visible lines.
• Useful for showing features such as underground pipes or embedded reinforcements.
• Aid in understanding the full geometry of complex civil structures.
• Ensure that hidden details are not overlooked during construction or inspection.

Centre Lines

• Represent axes of symmetry or centres of circular features.
• Composed of alternating long and short dashes.
• Critical for locating holes, columns, and circular foundations accurately.
• Help in dimensioning and aligning components on site.
• Used extensively in layout drawings for road intersections and roundabouts.

Cutting Plane Lines

• Show where a section is taken through an object or structure.
• Drawn as thick dashed lines with arrows indicating the viewing direction.
• Essential for sectional views that reveal internal details.
• Assist engineers in inspecting hidden interior features of structural elements.
• Used in bridge pier designs to show reinforcement details.

Phantom Lines

• Indicate alternate positions of parts or adjacent structures.
• Drawn as long dash followed by two short dashes.
• Useful for showing movement or future expansion possibilities.
• Applied in drawings for movable bridge components or temporary works.
• Assist in planning demolition or phased construction.

2.1.2 Line thickness and styles

The thickness and style of lines in civil engineering drawings differentiate the importance and type of information being conveyed. Adhering to the correct standards is crucial for clarity and professionalism.

Line Thickness Categories

• Thick lines (0.7mm to 1.0mm) for visible outlines, cutting planes, and section boundaries.
• Medium lines (0.35mm to 0.5mm) for dimension lines, projection lines, and hatching.
• Thin lines (0.13mm to 0.25mm) for hidden details, centre lines, and guide lines.
• Consistent thickness enhances readability and prevents confusion.
• Kenyan standards align with BS 8888 guidelines for line weights.

Continuous Lines

• Solid lines with no breaks.
• Used for visible edges and outlines of objects.
• Convey definitive and prominent features.
• Preferred for main structural elements in drawings.
• Ensure these lines are bold enough to stand out in printed copies.

Dashed Lines

• Lines made up of short segments separated by spaces.
• Represent hidden features or elements not visible in the current view.
• The length and spacing of dashes are standardized for uniformity.
• Avoid overusing to prevent clutter in complex drawings.
• Common in civil drawings indicating underground utilities.

Chain Lines

• Consist of alternating long and short dashes.
• Used for centre lines and lines denoting symmetry.
• Help in aligning components and dimensioning.
• Should be thinner than object lines but clearly visible.
• Important in circular foundation and column layouts.

Freehand Lines

• Slightly irregular lines drawn freehand.
• Used mainly for break lines indicating an interrupted view.
• Help reduce drawing size by omitting repetitive sections.
• Should be neat and distinguishable from other line types.
• Applied in large scale site plans to save space.

2.1.3 Applications of different line types

Different line types have specific applications in civil engineering drawings, ensuring that every detail is communicated accurately to all stakeholders involved in a project.

Use of Visible Lines in Structural Drawings

• Outline beams, slabs, walls, and columns in plan and elevation views.
• Define the exact shape and size of structural components.
• Assist contractors in interpreting construction requirements.
• Ensure clarity in detailing reinforcements and connections.
• Provide a clear visual representation of the built structure.

Hidden Lines in Service Installations

• Show buried pipes, cables, and ducting beneath slabs or roads.
• Indicate concealed reinforcements inside concrete elements.
• Help in planning maintenance and avoiding damage during excavation.
• Communicate the presence of non-visible services to site engineers.
• Reduce risks of accidental disruption during construction.

Centre Lines in Layout and Alignment

• Mark axes for road centrelines, column grids, and bridge piers.
• Serve as reference points for measurements and positioning.
• Facilitate accurate setting out on site using survey equipment.
• Aid in checking symmetry and alignment during construction.
• Used in dimensioning drawings for clarity.

Cutting Plane Lines in Sectional Drawings

• Indicate where a structural element is sliced to show internal details.
• Clarify complex features such as reinforcement cages or joints.
• Provide detailed views that cannot be seen in standard plans.
• Enable engineers to verify compliance with design specifications.
• Essential in foundation and retaining wall designs.

Phantom Lines for Temporary and Future Works

• Show proposed expansions or temporary supports.
• Indicate alternate positions of movable parts like gates.
• Help in planning construction sequences and phasing.
• Communicate design intent for future modifications.
• Assist in safety planning by highlighting temporary structures.

Chapter Summary

This chapter began by exploring the identification of drawing lines, detailing various types, their meanings, and the significance of line thickness and styles in technical drawings. It then introduced basic AutoCAD drawing tools, focusing on creating fundamental shapes such as lines, circles, rectangles, and polygons, as well as more complex forms like polylines, splines, arcs, and ellipses, while emphasizing precision through snap, grid, and ortho modes. The chapter continued with modifying tools in AutoCAD, explaining how to move, copy, rotate, mirror, trim, extend, fillet, chamfer, offset, and array objects to refine drawings. Dimensioning and lettering principles were covered next, highlighting techniques and standards that ensure clarity and professionalism in technical documentation. Annotating drawings was addressed with instructions on adding formatted text, applying dimensioning tools, and using hatching patterns to represent different areas. Construction of geometric forms involved step-by-step methods for basic and complex shapes, demonstrating their practical applications. Finally, the chapter discussed the measurement and construction of angles, describing the use of tools like protractors and compasses, techniques for bisecting angles, and the application of trigonometric principles to produce accurate and precise angular forms.
