By the end of this chapter, you will be able to:
Mastering these skills will help you build reliable and safe electrical control systems that work efficiently in real-world applications.
Electrical and electronic components form the foundation of all control systems used in electronics engineering. Mastery of these components and their mounting techniques is essential for professionals designing, maintaining, or troubleshooting control systems in Kenya's diverse industries such as manufacturing, telecommunications, and automation. Proper mounting ensures reliability, safety, and optimal performance of electrical machines and systems. This chapter explores the key terminology related to mounting electrical and electronic components, clarifying concepts that underpin effective system integration.
The terminology used in mounting electrical and electronic components can be technical and specific. Understanding these terms is critical for electronics engineers working on control systems to ensure components are installed correctly and function as intended. In Kenya, where equipment may be exposed to harsh environmental conditions or power fluctuations, knowledge of these terms supports robust system design and maintenance.
Mounting refers to the process of securely fixing electrical or electronic components onto a surface or within a framework to ensure mechanical stability and electrical safety. In electronics engineering, correct mounting reduces mechanical stress, prevents damage, and facilitates heat dissipation, thereby extending component lifespan.
Surface Mounting: Components are mounted directly onto the surface of printed circuit boards (PCBs). This is prevalent in compact electronics like mobile devices where space is limited, and automated soldering techniques are used for precision.
Through-Hole Mounting: Components with leads are inserted into holes drilled in PCBs and soldered on the opposite side. This method provides strong mechanical bonds suitable for components subjected to mechanical stress, such as connectors in industrial control panels.
Panel Mounting: Electrical devices like switches, meters, and indicators are fixed onto control panels. This allows easy access for operation and maintenance, common in county government offices managing industrial automation.
DIN Rail Mounting: Components such as relays, circuit breakers, and terminal blocks are clipped onto standardized metal rails inside enclosures. This modular approach simplifies installation and replacement in electrical distribution boards used in hospitals.
Chassis Mounting: Larger components, such as transformers and power supplies, are bolted directly onto a metal chassis to provide sturdy support and effective grounding, often seen in power electronics labs at universities.
These terms describe the physical devices used in control systems that perform specific electrical or electronic functions. Differentiating between electrical and electronic components is important because their mounting and handling requirements differ.
Resistors, Capacitors, and Inductors: Passive components that regulate current and voltage within circuits. For instance, resistors in a solar power inverter at a farm regulate current flow to protect sensitive electronics.

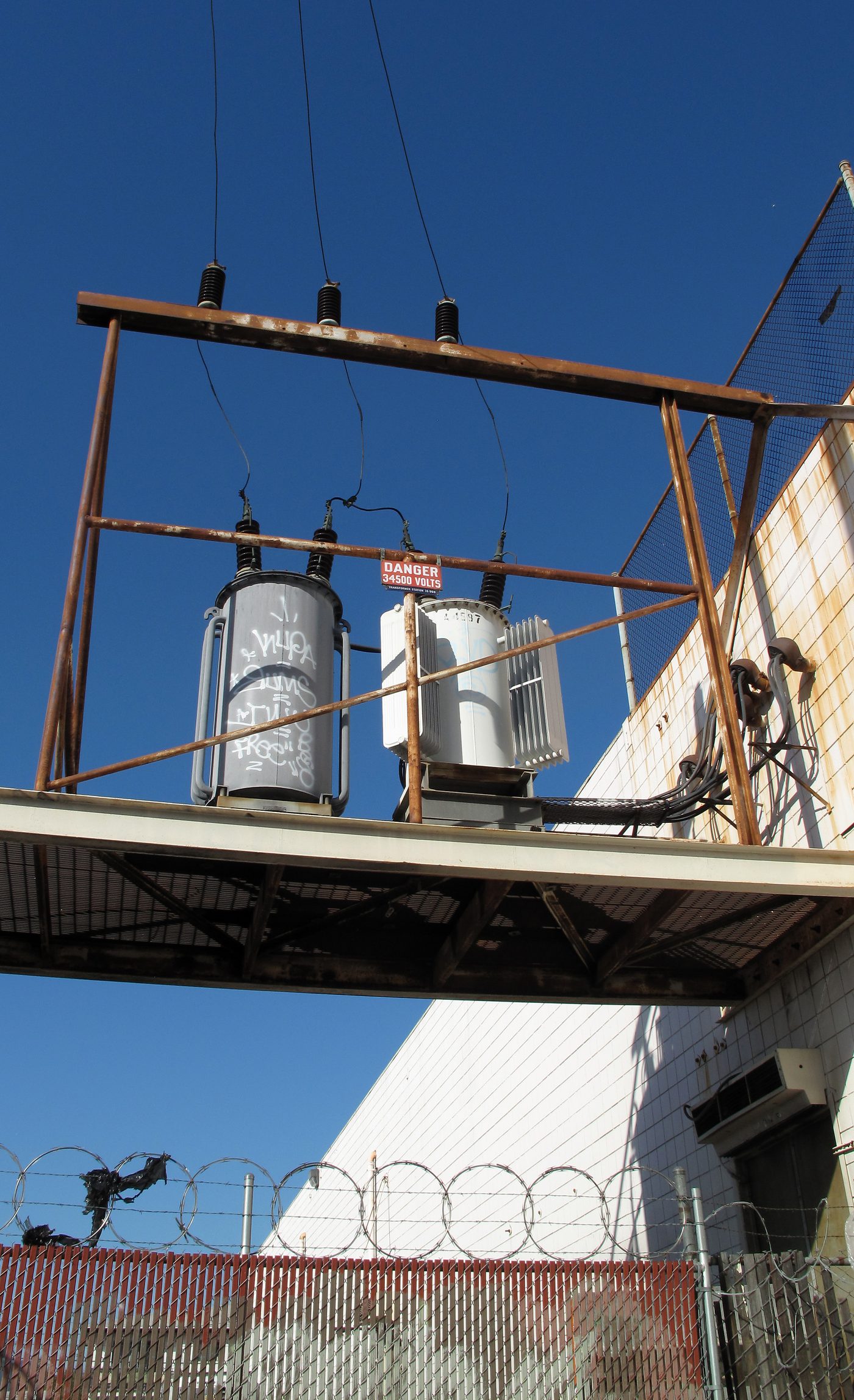

Transformers: Devices that transfer electrical energy between circuits through electromagnetic induction, essential in voltage regulation in hospitals’ emergency power systems.
Switches and Relays: Mechanical or electromechanical devices that control current flow, widely used in control panels at retail businesses to operate lighting and security systems.

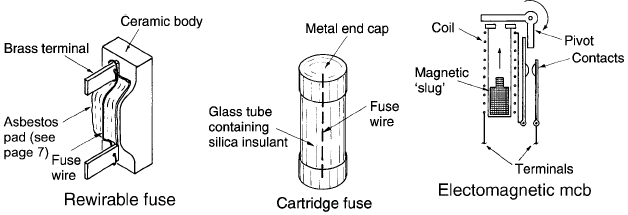

Fuses and Circuit Breakers: Protective devices that interrupt current flow under fault conditions, crucial for safeguarding equipment in county government offices.
Motors and Generators: Electromechanical devices converting electrical energy to mechanical energy and vice versa, used extensively in manufacturing plants.
Diodes and Transistors: Semiconductor devices controlling current direction and amplification, fundamental in signal processing equipment at telecommunications companies.

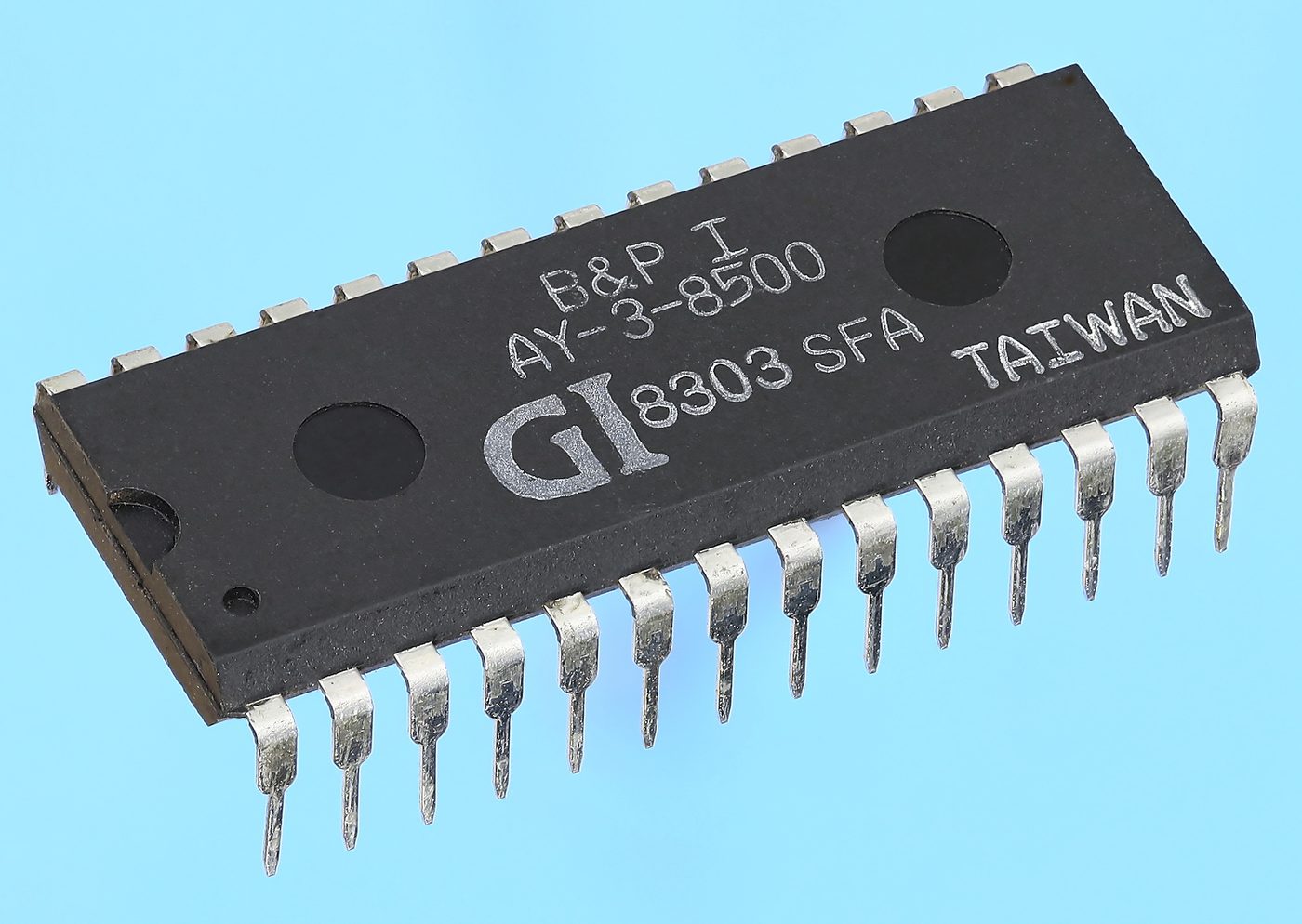

Integrated Circuits (ICs): Miniaturized electronic circuits performing various functions such as amplification, switching, and computation, widely used in automated teller machines (ATMs).
Sensors and Actuators: Devices that detect physical parameters (temperature, pressure) and perform mechanical actions, integral to automated irrigation systems in agricultural cooperatives.
Microcontrollers and Microprocessors: Programmable devices that control complex operations in embedded systems like smart meters used by energy companies.
Optoelectronic Devices: Components like LEDs and photodiodes converting electrical signals to light and vice versa, used in fiber optic communication infrastructure.
Mounting accessories are the mechanical parts that assist in securing components, ensuring proper alignment, and providing insulation and protection. Selecting appropriate accessories is critical to maintain system integrity and safety.
Screws and Bolts: Provide mechanical fastening for chassis and panel mounting; their material and size affect durability and conductivity, important in environments like county hospitals.
Clips and Clamps: Hold cables and wires in place to prevent strain and accidental disconnections, used extensively in telecommunications cabinets.
Insulating Sleeves and Bushings: Prevent electrical contact between conductive parts and mounting surfaces, enhancing safety in power distribution boards.
Mounting Brackets and Plates: Offer structural support and facilitate modular installation of components, common in industrial control panels at manufacturing firms.
Washers and Spacers: Maintain proper distance between components and mounting surfaces to prevent short circuits and improve airflow for cooling, critical in densely packed electronic assemblies.
The environment in which components are mounted influences the choice of materials and mounting techniques. Electronics engineers must consider environmental factors to ensure longevity and reliability of control systems deployed in Kenya's varied climatic and operational conditions.
Ambient Temperature: The surrounding air temperature affects component performance; high temperatures in regions like Mombasa require components with higher thermal tolerance and heat dissipation measures.
Humidity and Moisture: High humidity levels can cause corrosion and short circuits; protective enclosures and conformal coatings are used in coastal areas.
Vibration and Shock: Industrial machinery generates vibrations that can loosen connections; shock-absorbing mounts are necessary in factories and transport systems.
Dust and Contaminants: Dust accumulation can impair electrical contacts; sealed enclosures and regular cleaning are standard in agricultural processing plants.
Ingress Protection (IP) Rating: Defines the degree of protection against solids and liquids; components mounted outdoors, such as at remote telecom towers, require high IP ratings to withstand weather exposure.
Describe the differences between surface mounting and through-hole mounting and explain where each would be preferable in Kenya’s electronics industry. (10 marks)
List and explain five types of electrical components commonly used in control systems and their roles. (10 marks)
Identify five mounting accessories and discuss their importance in maintaining the integrity of electrical installations. (10 marks)
Explain how environmental factors influence the mounting of electronic components, providing examples relevant to Kenyan operational contexts. (10 marks)
Create a free account to open more of this chapter.
Free: practical guides, quick cards, workplace scenarios and more.
Create a free accountThis chapter introduced key terms related to electrical machine control systems, establishing a foundation for understanding the components involved. It explored various components of control systems, beginning with sensors and actuators that detect and influence physical processes. Limit switches and push buttons were discussed as essential input devices for manual and automatic control. Logic gates and microcontrollers were explained as critical elements for processing control signals, followed by programmable logic controllers and SCADA systems that provide advanced automation and monitoring capabilities. The chapter also covered mounting hardware such as din rails and control panels that organize and protect components. Additional components including transmitters, timers, counters, variable speed drives, contactors, and relays were described for their roles in signal transmission, timing, speed regulation, and switching. Finally, the chapter addressed interpreting control system designs through understanding symbols, terminations, drawings, and the different types of enclosures used to safeguard electrical equipment.
Type: Individual
| Tools & Equipment | Materials |
|---|---|
| Wire stripper and cutter | Limit switch 3-wire type |
| Screwdriver set | Push button (Start/Stop) 2 Nos |
| Crimping tool | Control panel metal enclosure 400mm x 300mm x 150mm |
| Multimeter | Twin core control cable 1.5 mm² |
| Spirit level 200mm | Single core flexible wire 1.5 mm² |
| Cable lugs 1.5 mm² | |
| Terminal blocks | |
| Cable ties | |
| Labels for components | |
| Screws and mounting accessories | |
| Insulation tape roll |
| S/N | Item | Quantity |
|---|---|---|
| 1 | Limit switch 3-wire type | 1 Pc per Candidate |
| 2 | Push button (Start/Stop) 2 Nos | 1 Set per Candidate |
| 3 | Control panel metal enclosure 400mm x 300mm x 150mm | 1 Pc per Candidate |
| 4 | Twin core control cable 1.5 mm² | 3 Meters per Candidate |
| 5 | Single core flexible wire 1.5 mm² | 2 Meters per Candidate |
| 6 | Cable lugs 1.5 mm² | 4 Pcs per Candidate |
| 7 | Terminal blocks | 4 Pcs per Candidate |
| 8 | Cable ties | 1 Pack per 5 Candidates |
| 9 | Labels for components | 1 Set per Candidate |
| 10 | Screws and mounting accessories | 1 Set per Candidate |
| 11 | Insulation tape roll | 1 Roll per Candidate |
| 12 | Wire stripper and cutter | 1 Pc per Candidate |
| 13 | Screwdriver set | 1 Set per Candidate |
| 14 | Crimping tool | 1 Pc per Candidate |
| 15 | Multimeter | 1 Pc per Candidate |
| 16 | Spirit level 200mm | 1 Pc per Candidate |
| Items to be Evaluated | Marks Available | Marks Obtained | Comments |
|---|---|---|---|
| TASK 1: Preparation and Safety | |||
| Wore dust coat or overall (Award 1 mark for wearing dust coat/overall; 0 if not) | 1 | ||
| Wore safety boots or closed shoes (Award 1 mark for wearing safety boots or closed shoes; 0 if not) | 1 | ||
| Used insulated gloves when handling wiring (Award 1 mark for using insulated gloves; 0 if not) | 1 | ||
| Sub-Total | 3 | ||
| TASK 2: Component Mounting | |||
| Marked and drilled mounting holes accurately on control panel (Award 2 marks for correct marking and drilling; 0 if incorrect) | 2 | ||
| Mounted limit switch firmly and aligned using spirit level (Award 2 marks for firm and level mounting; 0 if loose or misaligned) | 2 | ||
| Mounted push buttons firmly and aligned using spirit level (Award 2 marks for firm and level mounting; 0 if loose or misaligned) | 2 | ||
| Sub-Total | 6 | ||
| TASK 3: Wiring and Termination | |||
| Stripped wires to correct length without nicking conductors (Award 2 marks for correct stripping; 0 if conductor damaged) | 2 | ||
| Fitted cable lugs correctly and crimped securely (Award 2 marks for secure crimping; 0 if loose or poor crimp) | 2 | ||
| Connected limit switch and push buttons as per wiring schematic (Award 3 marks for correct wiring connections; 0 if incorrect) | 3 | ||
| Used terminal blocks for neat and safe terminations (Award 2 marks for proper use of terminal blocks; 0 if missing or sloppy) | 2 | ||
| Secured cables inside panel with cable ties neatly (Award 1 mark for neat cable management; 0 if cables loose or tangled) | 1 | ||
| Sub-Total | 10 | ||
| TASK 4: Labelling and Identification | |||
| Labeled limit switch and push buttons clearly for identification (Award 2 marks for clear, correct labeling; 0 if missing or unclear) | 2 | ||
| Sub-Total | 2 | ||
| TASK 5: Testing and Verification | |||
| Tested continuity of wiring using multimeter (Award 2 marks for correct continuity test; 0 if not done or incorrect) | 2 | ||
| Demonstrated correct operation of limit switch and push buttons (Award 3 marks for functional test with correct operation; 0 if not functioning) | 3 | ||
| Sub-Total | 5 | ||
| PRODUCT CHECKLIST | |||
| Mounted limit switch and push buttons are level, firmly fixed, and aligned (Award 5 marks for correct mounting per dimensions and alignment; 0 if not) | 5 | ||
| Wiring is neat, color code observed, cables properly terminated with no conductor damage (Award 5 marks for neat, correct wiring and termination; 0 if poor workmanship) | 5 | ||
| Labels are clear, legible and correctly placed on components (Award 3 marks for proper labeling; 0 if missing or unclear) | 3 | ||
| Overall control panel size matches 400mm x 300mm enclosure dimensions (Award 2 marks for correct panel enclosure dimension; 0 if incorrect) | 2 | ||
| Sub-Total | 15 | ||
| GRAND TOTAL | 41 | ||
Type: Individual
| Tools & Equipment | Materials |
|---|---|
| Screwdriver Set | Proximity Sensor (PNP, 24V DC) |
| Wire Strippers | Solenoid Actuator 24V DC |
| Crimping Tool | 4-20mA Current Transmitter Module |
| Multimeter | Control Panel Enclosure (300mm x 200mm x 150mm) |
| 22 AWG Hook-up Wire (red, black, blue) | |
| Cable Lugs | |
| Cable Ties | |
| Identification Labels | |
| Insulation Tape |
| S/N | Item | Quantity |
|---|---|---|
| 1 | Proximity Sensor (PNP, 24V DC) | 2 Pcs per Candidate |
| 2 | Solenoid Actuator 24V DC | 1 Pc per Candidate |
| 3 | 4-20mA Current Transmitter Module | 1 Pc per Candidate |
| 4 | Control Panel Enclosure (metal, 300mm x 200mm x 150mm) | 1 Pc per Candidate |
| 5 | 22 AWG Hook-up Wire (red, black, blue) | 5 m per Candidate |
| 6 | Cable Lugs | 4 Pcs per Candidate |
| 7 | Cable Ties | 10 Pcs per Candidate |
| 8 | Identification Labels | 5 Pcs per Candidate |
| 9 | Screwdriver Set | 1 Set per Candidate |
| 10 | Wire Strippers | 1 Pc per Candidate |
| 11 | Crimping Tool | 1 Pc per Candidate |
| 12 | Multimeter | 1 Pc per Candidate |
| 13 | Insulation Tape | 1 Roll per Candidate |
| Items to be Evaluated | Marks Available | Marks Obtained | Comments |
|---|---|---|---|
| TASK 1: PREPARATION AND SAFETY | |||
| Wore personal protective equipment (dust coat/overall, safety boots, gloves) (Award 1 mark each for dust coat and safety boots/gloves) | 2 | ||
| Applied good housekeeping before starting the installation (Award 1 mark for clear and safe working area) | 1 | ||
| Selected and used correct tools and equipment for mounting and wiring (Award 1 mark for appropriate tools and correct usage) | 1 | ||
| Sub-Total | 4 | ||
| TASK 2: MOUNTING ELECTRICAL COMPONENTS | |||
| Mounted the 2 proximity sensors correctly and securely inside the enclosure (Award 1 mark each for proper mounting and alignment) | 2 | ||
| Mounted the solenoid actuator securely in the control panel (Award 1 mark for correct and firm mounting) | 1 | ||
| Mounted the 4-20mA transmitter module correctly (Award 1 mark for proper mounting and orientation) | 1 | ||
| Used a spirit level or equivalent to ensure level mounting (Award 1 mark for level and plumb mounting) | 1 | ||
| Applied identification labels clearly on all mounted components (Award 1 mark for clear and correct labeling) | 1 | ||
| Sub-Total | 6 | ||
| TASK 3: WIRING AND CONNECTIONS | |||
| Stripped wires correctly without nicking conductors (Award 1 mark each for neat stripping and no conductor damage) | 2 | ||
| Made correct cable joints and terminated wires with cable lugs (Award 1 mark each for correct jointing and proper lug crimping) | 2 | ||
| Observed correct colour coding for wiring (e.g. red for positive, black for negative, blue for signal) (Award 2 marks for full correct colour code adherence) | 2 | ||
| Connected sensors, actuator, and transmitter to power and control circuits as per schematic (Award 3 marks for accurate and neat wiring connections) | 3 | ||
| Used cable ties to secure wiring bundles neatly (Award 1 mark for tidiness and cable management) | 1 | ||
| Sub-Total | 10 | ||
| TASK 4: TESTING AND COMMISSIONING | |||
| Performed insulation resistance test on wiring (Award 1 mark for correct insulation test) | 1 | ||
| Configured transmitter module for 4-20mA output correctly (Award 2 marks for correct configuration and calibration) | 2 | ||
| Tested sensor outputs with multimeter and confirmed signal presence (Award 2 marks for correct testing and confirmation) | 2 | ||
| Tested solenoid actuator operation by energizing coil (Award 2 marks for functional test and correct response) | 2 | ||
| Verified all wiring connections for tightness and safety (Award 1 mark for secure connections) | 1 | ||
| Sub-Total | 8 | ||
| PRODUCT CHECKLIST | |||
| All components mounted securely and level inside the 300mm x 200mm x 150mm enclosure (Award 3 marks for correct mounting and alignment) | 3 | ||
| Wiring is neat, colour-coded correctly, and terminated properly with cable lugs (Award 3 marks for wiring neatness, colour code, and terminations) | 3 | ||
| Identification labels are clear and correctly placed on all components (Award 2 marks for proper labeling) | 2 | ||
| Transmitter configured correctly with 4-20mA output verified (Award 2 marks for correct configuration and output) | 2 | ||
| Sensors and actuator operate correctly as per functional tests (Award 5 marks for full operational functionality) | 5 | ||
| Sub-Total | 15 | ||
| GRAND TOTAL | 43 | ||
