Rainwater harvesting systems are increasingly important across Kenyan institutions and industries as a sustainable water management solution. Proper schematic drawings are essential for planning, installation, and maintenance of these systems, ensuring efficiency and safety. This chapter focuses on preparing rainwater harvesting schematic drawings, starting with the critical aspect of personal protective equipment (PPE) required during site assessment, measurement, and drawing activities. Understanding PPE ensures safety compliance in diverse professional settings such as hospitals, schools, banks, and agricultural cooperatives.

1.1 Personal Protective Equipment

Personal protective equipment is mandatory for all professionals involved in rainwater harvesting system projects to minimize risks from physical hazards on-site. PPE protects against falling objects, chemical exposure, dust, electrical hazards, and other dangers common in construction and maintenance environments. In Kenyan workplaces such as county government offices and retail businesses, proper PPE use aligns with the Occupational Safety and Health Act (OSHA) requirements and promotes a culture of safety.

1.1.1 Helmet

Helmets are the first line of defense against head injuries during site visits and technical drawing preparations involving field measurements.

Purpose of Helmets

• Protection from Falling Objects: Helmets shield the head from debris or tools accidentally dropped during installation or inspection.
• Impact Absorption: The helmet’s inner lining absorbs shock, reducing the severity of blows.
• Electrical Hazard Protection: Non-conductive helmets protect against accidental contact with electrical wires or equipment.
• Visibility: Many helmets have reflective strips to enhance visibility in low-light conditions.
• Compliance with Standards: Helmets used must meet BS EN 397 or equivalent Kenyan standards, ensuring quality and reliability.

Types of Helmets Used in Rainwater Harvesting Work

• Industrial Safety Helmets: Standard helmets suitable for general construction and maintenance tasks.

• Electrical Insulated Helmets: Helmets designed specifically to protect against electrical shocks.

• High-Visibility Helmets: Helmets with bright colors or reflective materials used in busy or dimly lit sites.
• Ventilated Helmets: Helmets with air vents for comfort during hot weather conditions.
• Custom-Fitted Helmets: Adjustable helmets ensuring a secure fit to prevent slipping during movement.

Proper Use and Maintenance of Helmets

• Inspect helmets before use for cracks or damages.
• Adjust straps and internal fittings for a snug fit.
• Clean helmets regularly with mild soap and water.
• Store helmets away from direct sunlight and chemicals.
• Replace helmets every 3 to 5 years or immediately if damaged.

Practical Example

At a county referral hospital undergoing rainwater harvesting installation, workers wore industrial safety helmets meeting BS EN 397 standards. This prevented head injuries when installing gutters and downpipes at height.

1.1.2 Gloves

Gloves protect hands from cuts, abrasions, and contamination during site handling of materials and tools.

Functions of Gloves in Rainwater Harvesting Tasks

• Protection from Sharp Edges: Gloves shield hands from cuts caused by metal sheets and pipes.
• Grip Enhancement: Rubber or textured gloves improve handling of slippery or wet components.
• Chemical Resistance: Certain gloves protect against cleaning agents or sealants used in the system.
• Thermal Protection: Gloves provide insulation when handling hot or cold materials.
• Hygiene Maintenance: Gloves reduce direct contact with potentially contaminated surfaces.

Types of Gloves Suitable for Rainwater Harvesting

• Leather Gloves: Durable and resistant to punctures, ideal for handling rough materials.

• Rubber Gloves: Provide waterproof protection and good grip during wet conditions.

• Nitrile Gloves: Chemical-resistant and suitable for handling adhesives or sealants.

• Cotton Gloves: Used for light handling and to prevent dirt transfer.

• Heat-Resistant Gloves: Protect hands when working with heated pipes or welding.

Guidelines for Using and Maintaining Gloves

• Select gloves appropriate to the specific task hazards.
• Inspect gloves before use for tears or holes.
• Clean gloves according to material specifications.
• Replace gloves immediately if damaged or contaminated.
• Store gloves in a clean, dry place away from direct sunlight.

Example

During a rainwater harvesting project at a university, workers used nitrile gloves when applying sealants to storage tanks, preventing skin irritation and chemical exposure.

1.1.3 Dustcoat/Overall

Dustcoats or overalls protect the body and clothing from dust, dirt, and minor chemical splashes during site activities.

Importance of Dustcoats/Overalls

• Full Body Protection: Covers arms, legs, and torso to prevent skin contact with dust and debris.
• Clothing Preservation: Protects personal clothing from stains and damage.
• Barrier Against Chemicals: Provides a protective layer during handling of cleaning agents or sealants.
• Enhanced Safety: Brightly colored dustcoats increase worker visibility.
• Comfort and Mobility: Designed to allow ease of movement during physical tasks.

Types of Dustcoats and Overalls

• Cotton Overalls: Lightweight and breathable for warm environments.
• Polyester/Cotton Blends: Durable and resistant to wear.

• Disposable Coveralls: Used for single-use protection against hazardous dust or chemicals.

• Flame-Resistant Overalls: Used when work involves heat or sparks.

• High-Visibility Overalls: Equipped with reflective strips for low-light conditions.

Proper Use and Care

• Ensure correct sizing for unrestricted movement.
• Remove dustcoats before entering clean or office areas.
• Wash reusable overalls regularly according to manufacturer instructions.
• Dispose of single-use coveralls after contamination.
• Repair or replace damaged overalls promptly.

Practical Example

Workers at a retail business installing rainwater harvesting gutters wore high-visibility overalls to remain visible to customers and vehicles on-site.

1.1.4 Safety Boots

Safety boots protect feet from injuries caused by heavy objects, sharp materials, and slippery surfaces.

Key Protection Features of Safety Boots

• Steel Toe Cap: Guards toes against impact and compression injuries.

• Slip-Resistant Soles: Prevents slips and falls on wet or uneven surfaces.

• Puncture-Resistant Midsole: Protects against nails or sharp debris penetration.
• Waterproofing: Keeps feet dry during wet weather or water spills.
• Ankle Support: Provides stability on rough terrain.

Types of Safety Boots for Rainwater Harvesting Work

• Steel-Toe Leather Boots: Durable and suitable for heavy-duty tasks.

• Composite Toe Boots: Lightweight alternative to steel with similar protection.

• Rubber Boots: Waterproof and ideal for wet conditions.

• Slip-Resistant Work Boots: Designed for slippery surfaces common around water tanks.
• Insulated Boots: Provide warmth in cold environments.

Care and Maintenance of Safety Boots

• Clean boots regularly to remove mud and debris.
• Check soles for wear and replace if tread is worn out.
• Dry boots naturally, avoiding direct heat sources.
• Inspect for cracks or damage before use.
• Store in a cool, dry place away from chemicals.

Example

At a cooperative farm implementing rainwater harvesting, workers wore steel-toe leather boots to protect against heavy pipes and tools during installation.

1.1.5 Safety Harness

Safety harnesses prevent falls when working at heights, such as on rooftops or elevated platforms during rainwater system installation.

Purpose of Safety Harnesses

• Fall Arrest: Prevents workers from falling from heights by securing them to anchor points.
• Fall Restraint: Restricts movement to safe working zones to avoid fall hazards.
• Load Distribution: Spreads force across the body to minimize injury if a fall occurs.
• Mobility Support: Allows workers to move freely while secured.
• Compliance: Meets OSHA and Kenyan safety regulations for working at heights.

Components of a Safety Harness System

• Full Body Harness: Straps around shoulders, chest, waist, and legs.

• Lanyard: Connects harness to an anchor point.

• Anchor Point: Secure location capable of supporting fall forces.

• Shock Absorber: Reduces impact forces during a fall.

• Connectors: Hooks or carabiners joining components.

Correct Use and Inspection Procedures

• Inspect harness and lanyard for wear, tears, or corrosion before use.
• Adjust straps to fit snugly but comfortably.
• Attach lanyard securely to a certified anchor point.
• Avoid sharp edges or abrasive surfaces that may damage equipment.
• Remove damaged or expired harnesses from service immediately.

Practical Example

Technicians at a county government office used safety harnesses when accessing rooftops to survey rainwater harvesting system placement, ensuring zero fall incidents.

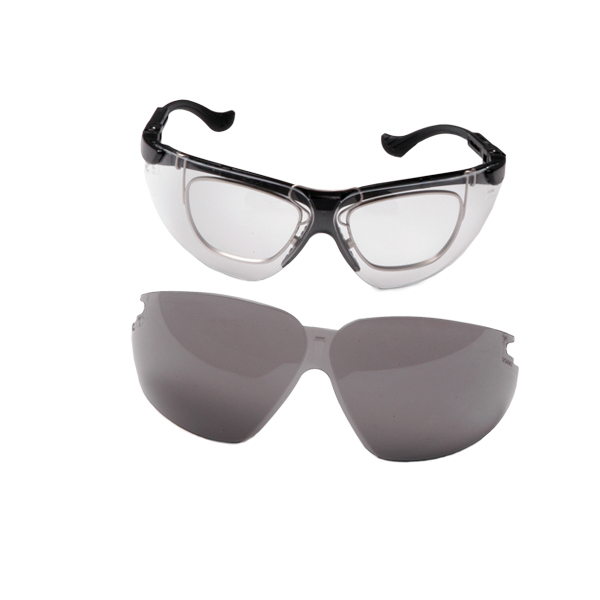

1.1.6 Safety Goggles

Safety goggles protect eyes from dust, splashes, and flying debris during site work and drawing preparations.

Eye Hazards in Rainwater Harvesting Work

• Dust and Debris: Generated when cleaning gutters or cutting pipes.
• Chemical Splashes: From cleaning agents, sealants, or paints.
• UV Radiation: Exposure when working outdoors for extended periods.
• Impact from Particles: Small objects propelled during installation.
• Moisture: Water spray that can cause irritation or visibility impairment.

Types of Safety Goggles

• Ventilated Goggles: Allow airflow to reduce fogging while protecting eyes.
• Non-Ventilated Goggles: Provide maximum protection against liquid splashes.
• Over-the-Glass Goggles: Fit over prescription glasses.

• Anti-Fog Goggles: Coated lenses to maintain clear vision.

• UV Protection Goggles: Filter harmful ultraviolet rays during outdoor work.

Usage and Maintenance Guidelines

• Select goggles appropriate to the hazard type.
• Clean lenses regularly with soft cloth and mild detergent.
• Store goggles in protective cases to avoid scratches.
• Replace goggles if lenses are scratched or damaged.
• Ensure a snug fit to prevent entry of particles.

Example

During rainwater harvesting system inspections at a bank, staff wore ventilated safety goggles to protect against dust while maintaining clear vision.

Chapter Summary

This chapter provided a comprehensive overview of preparing rainwater harvesting schematic drawings, starting with the importance of personal protective equipment to ensure safety during site work and drawing preparation. Essential PPE such as helmets, gloves, dustcoats, safety boots, harnesses, and goggles were discussed for protection against common hazards. The chapter then explored various types of working drawings including pictorial, line drawings, freehand sketches, and scale drawings, emphasizing their roles in accurately representing rainwater harvesting systems. Measurement conversion techniques were covered to facilitate precise scaling and dimensioning in technical drawings. The use of standardized symbols was introduced to ensure clarity and uniformity in schematic representations. Finally, design sketching was described as a crucial step in translating conceptual ideas into detailed plans for effective rainwater harvesting system implementation.
