Water supply systems are critical in various sectors across Kenya, including healthcare, agriculture, hospitality, and public administration. The selection and costing of materials directly influence the sustainability, efficiency, and reliability of water delivery. Understanding the types of materials used and their associated costs helps professionals in diverse fields to plan, budget, and maintain water systems effectively.

2.1 Materials and Supplies

Materials and supplies for water supply systems encompass a wide range of components necessary for constructing and maintaining pipelines, joints, and connections. These materials must be durable, compatible with water quality standards, and cost-effective to ensure long-term functionality. Kenyan institutions such as county referral hospitals and universities often face budget constraints, making the knowledge of these materials essential for efficient resource allocation.

2.1.1 Pipes

Types of Pipes Commonly Used in Water Supply Systems

• PVC (Polyvinyl Chloride) Pipes: Lightweight and corrosion-resistant, PVC pipes are widely used for potable water distribution in schools and retail businesses due to their affordability and ease of installation.

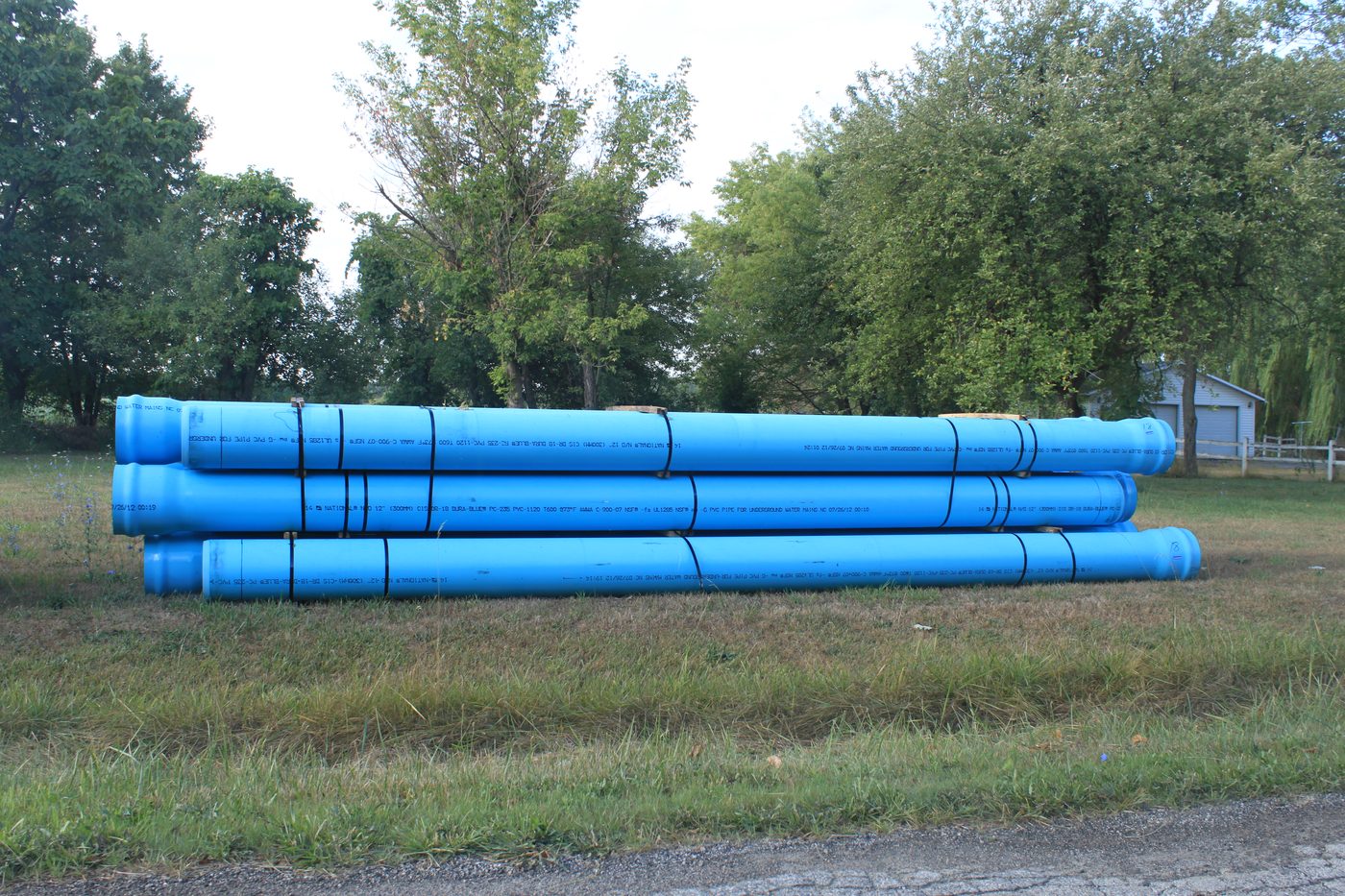

• HDPE (High-Density Polyethylene) Pipes: Known for flexibility and resistance to chemical corrosion, HDPE pipes are suitable for underground water supply in agricultural cooperatives where soil conditions vary.

• Galvanized Steel Pipes: These are coated with zinc to prevent rusting and are often used in older buildings such as county government offices but require regular maintenance to prevent corrosion.

• Copper Pipes: Durable and resistant to biofilm formation, copper pipes are preferred in hospital water systems for their hygienic properties despite higher costs.

• Ductile Iron Pipes: Strong and able to withstand high pressure, ductile iron pipes are typically used in large-scale water supply projects for universities and hotels.

Factors Influencing Pipe Costing

• Material Type: Different materials have varying costs; for example, copper pipes are more expensive than PVC.
• Diameter and Thickness: Larger diameter and thicker pipes cost more due to increased material usage.
• Length Required: Total pipe length directly affects the overall cost.
• Installation Complexity: Pipes requiring trenching in rocky or urban areas may increase labour costs.
• Supplier and Market Availability: Prices fluctuate based on local supply chains and import duties, impacting institutions like SACCOs managing infrastructure projects.

Durability and Maintenance Considerations

• Resistance to Corrosion: PVC and HDPE pipes resist corrosion, reducing maintenance costs in environments such as agricultural farms.
• Pressure Ratings: Pipes must match system pressure to avoid bursts, especially critical in multi-storey university buildings.
• UV Resistance: Pipes exposed above ground, such as in hotel gardens, need UV-resistant materials to prevent degradation.
• Compatibility with Water Quality: Some pipes react with water containing certain minerals; for example, galvanized steel may corrode faster in acidic water.
• Lifespan: Selecting materials with longer lifespan reduces replacement frequency and overall costs.

Typical Applications of Different Pipes

• PVC pipes are prevalent in domestic water supply for county government offices because of cost-effectiveness.
• HDPE pipes are preferred in irrigation systems on commercial farms for their flexibility.
• Copper pipes find use in hospital water systems for sterile water delivery.
• Ductile iron pipes serve municipal water supply systems for universities and large hotels.
• Galvanized steel pipes are often found in older buildings pending upgrade to modern materials.

2.1.2 Fittings

Fittings connect pipes and enable changes in direction, diameter, or flow control within the water supply system. The quality and cost of fittings influence system integrity and leak prevention. Kenyan financial institutions managing branch renovations need to consider fitting types carefully to avoid costly water losses.

Types of Fittings and Their Functions

• Elbows: Used to change pipe direction, typically at 45 or 90 degrees, essential in routing pipes in constrained spaces like hospital wards.

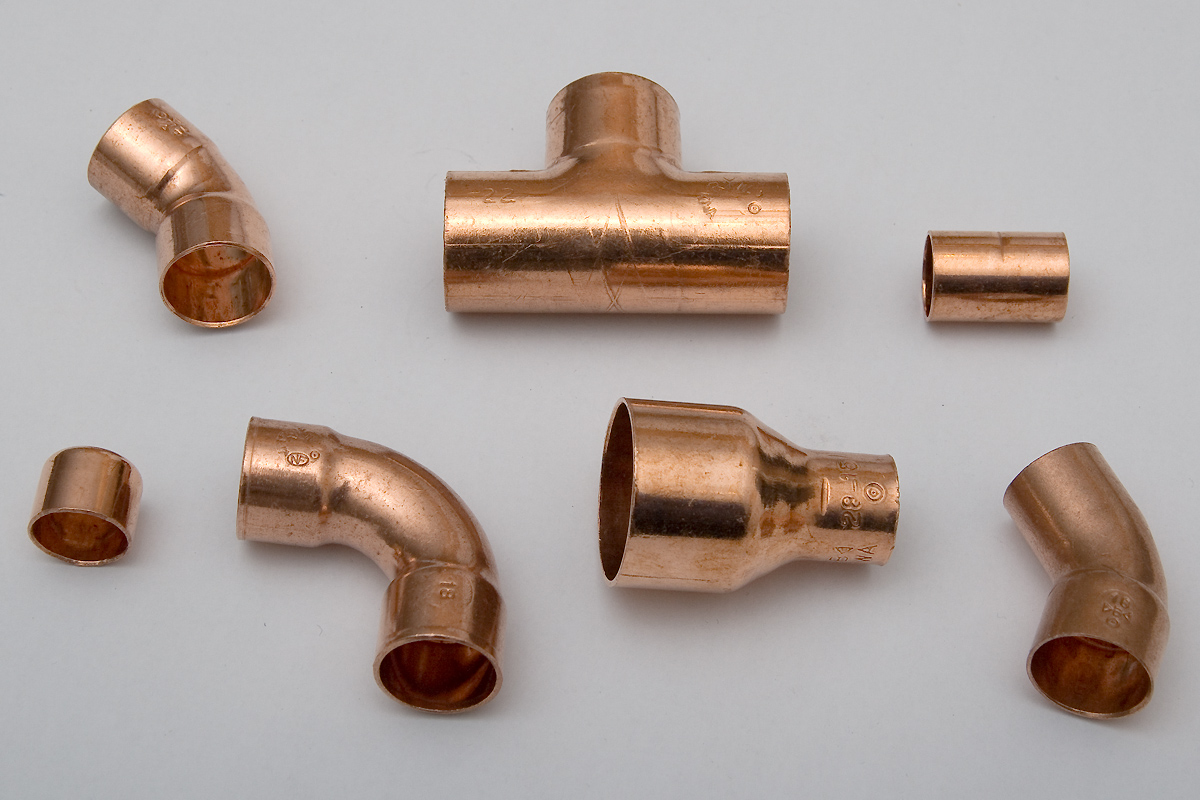

• Tees: Allow branching of water flow into different directions, useful in multi-floor office buildings.

• Couplings: Join two pipes of the same diameter, facilitating pipe extension during system upgrades in universities.

• Reducers: Connect pipes of different diameters, often used in agricultural irrigation systems to regulate flow.
• Valves: Control water flow and pressure; gate valves are common in county water offices for isolating sections during maintenance.

Material Types for Fittings

• PVC Fittings: Lightweight and corrosion-resistant, suitable for potable water in schools.

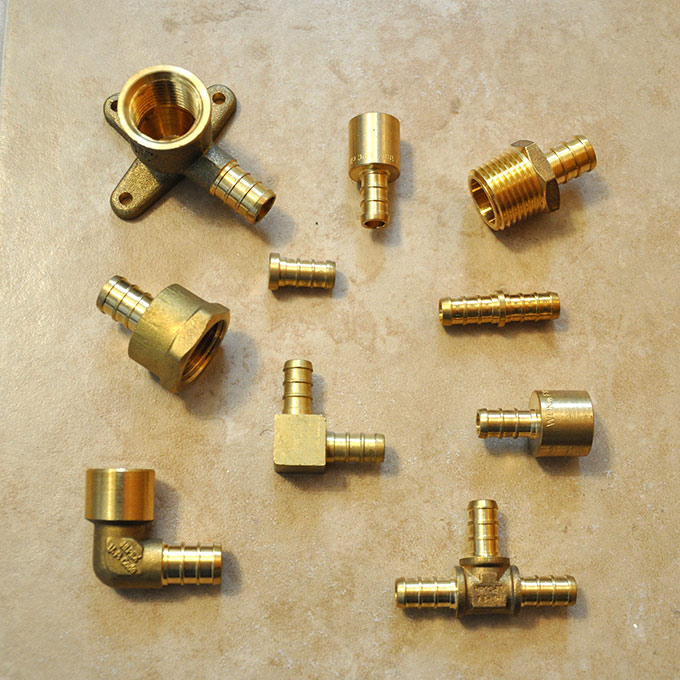

• Brass Fittings: Durable and resistant to high pressure, preferred in hotel plumbing systems.

• Stainless Steel Fittings: Used in hospitals for hygienic water delivery.

• Cast Iron Fittings: Employed in large municipal water systems such as university campuses.

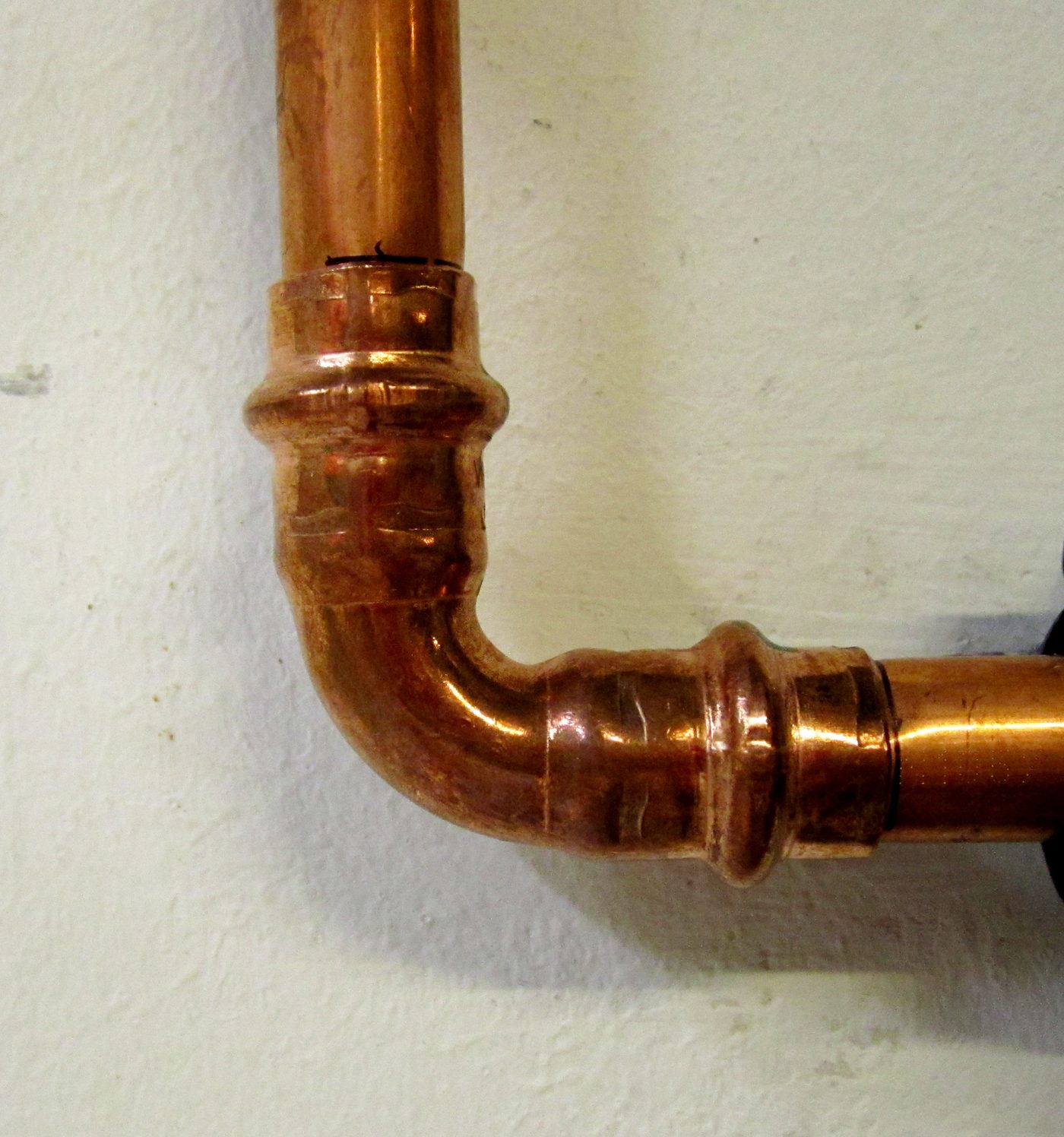

• Copper Fittings: Compatible with copper pipes, common in premium residential and institutional buildings.

Cost Considerations for Fittings

• Material Cost: Brass and stainless steel fittings are costlier than PVC.
• Size and Type: Larger diameter fittings and specialized valves increase expenses.
• Quantity Required: More complex systems with numerous directional changes require more fittings.
• Supplier Pricing and Availability: Local availability affects procurement costs for small businesses and cooperatives.
• Installation Complexity: Fittings requiring welding or special tools add to labour costs in retail business plumbing.

Importance of Quality in Fittings

• Preventing leaks reduces water wastage and operational costs in institutions such as county hospitals.
• Ensuring compatibility with pipe materials avoids premature failure.
• High-quality fittings withstand pressure fluctuations, maintaining system integrity.
• Durable fittings reduce frequency of repairs, saving maintenance budgets.
• Proper fittings ensure user safety by preventing contamination in potable water systems.

2.1.3 Jointing Paste

Jointing paste is a sealing compound applied to pipe threads and joints to prevent leaks and ensure a watertight connection. In Kenyan water supply systems, especially in sectors like education and healthcare, effective joint sealing is critical to maintain hygiene and system efficiency.

Purpose and Properties of Jointing Paste

• Sealing Capability: Fills gaps between threaded surfaces to prevent water leakage.
• Lubrication: Facilitates easier assembly and disassembly of threaded joints.
• Corrosion Resistance: Protects metal threads from rusting, extending pipe life.
• Compatibility: Suitable for use with various pipe materials including steel and brass.
• Non-Toxicity: Safe for potable water systems, essential in hospitals and schools.

Common Types of Jointing Pastes

• Petroleum-Based Pastes: Provide good lubrication and sealing but are not recommended for drinking water.
• Non-Hardening Pastes: Maintain flexibility and can be reused during maintenance.
• Hardening Pastes: Set firm to provide strong seals but limit joint disassembly.
• Anaerobic Sealants: Cure in absence of air, ideal for metal threaded joints in county government water systems.
• Natural Pastes: Made from organic materials like hemp oil, used in traditional plumbing.

Cost Factors Affecting Jointing Paste Selection

• Type of Paste: Specialized pastes cost more due to superior performance.
• Quantity Required: Larger systems need bulk purchases, affecting overall budget.
• Supplier Location: Importation increases cost for institutions like SACCOs.
• Shelf Life: Pastes with longer shelf life reduce waste and replacement frequency.
• Certification: Products certified for potable water use may cost more but ensure safety compliance.

Application Techniques and Best Practices

• Apply a thin, even layer on threaded surfaces to avoid excess that can clog pipes.
• Use appropriate paste compatible with pipe material to avoid chemical reactions.
• Ensure threads are clean and dry before application for effective sealing.
• Avoid using pastes on non-threaded joints unless specified.
• Follow manufacturer’s instructions to maximize sealing effectiveness and durability.

2.1.4 Adhesives

Adhesives bond pipes and fittings, especially in plastic water supply systems. Their strength, curing time, and water resistance are crucial factors in system reliability. Kenyan retail businesses installing new water lines benefit from using the correct adhesives to reduce leakages.

Types of Adhesives Used in Water Supply Systems

• Solvent Cement: Dissolves pipe surfaces to fuse them permanently, common with PVC and CPVC pipes.

• Epoxy Resins: Provide strong bonding for metal and plastic joints, used in specialized repairs at county hospitals.

• Polyurethane Adhesives: Flexible and waterproof, suitable for outdoor applications such as in farms.

• Silicone Sealants: Used for sealing joints and preventing leaks, especially in above-ground pipes.
• Anaerobic Adhesives: Cure in absence of air, ideal for threaded metal joints in office water systems.

Factors Affecting Adhesive Cost

• Type and Brand: High-performance adhesives cost more but offer longer durability.
• Quantity Needed: Larger projects require bulk adhesive purchases affecting budget.
• Curing Time: Fast-curing adhesives may cost more but reduce installation time.
• Shelf Life and Storage Requirements: Adhesives requiring special storage increase handling costs.
• Certification for Potable Water Use: Adhesives approved for drinking water systems command higher prices.

Application Procedures for Adhesives

• Clean and dry pipe surfaces thoroughly before application.
• Apply adhesive evenly to both pipe and fitting surfaces.
• Join components immediately after applying adhesive to ensure strong bonding.
• Hold joint firmly for the recommended curing time to prevent joint failure.
• Avoid disturbing the joint during curing to maintain adhesive strength.

Maintenance and Safety Considerations

• Store adhesives in cool, dry places to preserve effectiveness.
• Use protective equipment such as gloves and masks during application.
• Dispose of adhesive waste according to environmental regulations enforced by NEMA.
• Regularly inspect bonded joints for signs of leakage or deterioration.
• Replace adhesives in maintenance schedules to ensure long-term system integrity.

2.1.5 Hemp

Hemp is a natural fibrous material used traditionally for sealing threaded pipe joints. Its affordability and ease of use make it popular in rural water supply installations, such as in agricultural cooperatives and small-scale irrigation schemes.

Characteristics of Hemp as a Jointing Material

• Natural and Biodegradable: Environmentally friendly compared to synthetic alternatives.
• Good Sealing Properties: Expands when wet to fill gaps in pipe threads.
• Compatibility: Works well with metal threaded pipes like galvanized steel.
• Cost-Effective: Low cost makes it accessible for small enterprises and farms.
• Requires Additional Sealant: Often used with jointing paste or PTFE tape for enhanced sealing.

Preparation and Application of Hemp

• Clean threads to remove debris before wrapping hemp.
• Wrap hemp fibres tightly around the male pipe threads in the direction of tightening.
• Apply jointing paste or PTFE over hemp to improve sealing and prevent water ingress.
• Avoid excessive hemp which can prevent proper joint tightening.
• Inspect joints after assembly for leaks and adjust as necessary.

Limitations and Cost Implications

• Hemp degrades over time, requiring periodic replacement in water systems.
• Not suitable for plastic pipes or non-threaded joints.
• May absorb water leading to swelling and potential joint loosening.
• Labour-intensive application increases installation time and costs.
• Limited availability in urban centres may affect procurement for county water offices.

Modern Alternatives to Hemp

• PTFE tape offers easier application and longer-lasting seals.
• Synthetic jointing compounds reduce maintenance frequency.
• Mechanical seals provide reliable leak-proof joints with minimal labour.
• Use of pre-fabricated fittings reduces need for hemp in new installations.
• Training on modern sealing techniques improves overall water system efficiency.

2.1.6 PTFE

Polytetrafluoroethylene (PTFE) tape, commonly known as plumber’s tape, is a synthetic sealing material used on threaded pipe joints to prevent leaks. Its chemical inertness and ease of use make it a preferred choice in many Kenyan institutions including universities and hospitals.

Properties of PTFE Tape

• Chemical Resistance: Unaffected by most chemicals, ensuring durability.
• Temperature Tolerance: Performs well in a wide temperature range suitable for various water systems.
• Non-Toxicity: Safe for potable water applications.
• Flexibility: Easily wraps around threads to fill gaps.
• Low Friction: Facilitates easy joint tightening and disassembly.

Application Method for PTFE Tape

• Clean and dry pipe threads before wrapping tape.
• Wrap tape clockwise around male threads to match tightening direction.
• Overlap tape layers by 50% to ensure complete coverage.
• Avoid excessive tape that can prevent proper thread engagement.
• Do not apply tape on female threads or non-threaded joints.

Cost and Procurement Considerations

• PTFE tape is relatively inexpensive and widely available in hardware stores.
• Bulk purchasing reduces unit cost for large institutions like county referral hospitals.
• Quality varies between brands; higher quality tape ensures better sealing.
• Requires no special storage conditions, simplifying inventory management.
• Long shelf life reduces wastage and replacement frequency.

Advantages Over Traditional Materials

• Faster and cleaner application compared to hemp and jointing pastes.
• Does not harden or crack, maintaining seal integrity over time.
• Compatible with a wide range of pipe materials including metals and plastics.
• Reduces labour costs by simplifying joint assembly.
• Minimizes risk of contamination in potable water systems.

2.1.7 Welding Rods

Welding rods are consumable materials used in welding metal pipes and fittings to form permanent joints. They are essential in constructing durable water supply systems in facilities such as county government offices and hotels, where metal piping is prevalent.

Selection Criteria for Welding Rods

• Compatibility with Pipe Material: Welding rods must match the pipe metal to ensure strong joints.
• Mechanical Strength: Rods should provide adequate tensile strength for the system’s pressure requirements.
• Corrosion Resistance: Important for pipes exposed to water and environmental elements.
• Welding Process Compatibility: Different rods suit various welding techniques such as arc welding or TIG welding.
• Cost and Availability: Local availability affects procurement costs for institutions like banks managing facility upgrades.

Welding Rod Usage and Handling

• Store rods in dry conditions to prevent moisture absorption which leads to weld defects.
• Clean pipe surfaces before welding to remove rust and contaminants.
• Select appropriate rod diameter based on pipe thickness and welding technique.
• Use protective gear to ensure safety during welding operations.
• Maintain proper welding parameters to achieve strong, leak-proof joints.

Cost Factors in Welding Rod Procurement

• Brand and quality influence price, with certified rods costing more.
• Quantity purchased affects unit price; bulk buying reduces cost for large projects.
• Import duties and transportation costs impact final price for rural institutions.
• Storage and handling requirements add to operational costs.
• Wastage from improper storage or handling increases overall expenditure.

Maintenance and Inspection of Welded Joints

• Regularly inspect welds for cracks or corrosion, especially in water systems at hotels.
• Perform non-destructive testing methods to detect internal defects.
• Repair or replace defective welds promptly to avoid leaks.
• Maintain records of welding procedures and inspections for quality assurance.
• Train maintenance staff in welding joint care to prolong system lifespan.

Chapter Summary

This chapter examined the essential materials and supplies used in water supply systems, starting with an overview of pipes, fittings, jointing paste, adhesives, hemp, PTFE, and welding rods, highlighting their specific roles and properties. It then described the preparation of a materials schedule, which organizes and details all necessary components for a project. The process of materials quantification was explained, focusing on accurately measuring the quantities required to avoid shortages or excess. Finally, the chapter addressed the estimation of costs for materials and supplies, emphasizing the importance of precise budgeting to ensure project feasibility and financial control. Together, these topics provide a comprehensive understanding of managing materials effectively in water supply system projects.
