Sanitary appliances installation requires careful planning and adherence to safety standards to protect workers and ensure quality outcomes. Preparing a sanitary appliances layout schematic drawing involves working on-site and in workshops where hazards such as sharp tools, dust, and noise are common. In Kenya, professionals across diverse sectors such as county referral hospitals, universities, retail businesses, and farms must observe strict personal protective equipment (PPE) protocols to safeguard health and comply with occupational safety regulations. This chapter focuses on the essential PPE needed when preparing sanitary appliances layouts to maintain safety and efficiency.

1.1 Personal Protective Equipment

Personal protective equipment (PPE) is crucial in minimizing the risk of injuries and health hazards during sanitary appliance installation and layout drawing preparation. PPE selection depends on the specific hazards present in the workplace, and proper use ensures compliance with Kenya’s Occupational Safety and Health Act (OSHA) and international standards. Workers in county government offices, SACCOs, and hotels involved in sanitary works must be trained on PPE use to prevent accidents and maintain a safe working environment.

1.1.1 Helmet

Purpose of Wearing a Helmet

• Protection from Falling Objects: Helmets shield the head from injuries caused by tools or materials accidentally dropped during installation. This is vital in construction zones such as new hospital wings where sanitary appliances are installed.
• Impact Resistance: They absorb shocks from accidental bumps against fixed objects like pipes and beams, reducing head trauma risk.
• Electrical Insulation: Specialized helmets provide protection against accidental contact with live electrical wires during layout work near power lines in county government offices.
• Visibility: Helmets often have reflective strips improving worker visibility in dimly lit areas like hotel basements where sanitary works may occur.
• Compliance: Wearing helmets fulfills legal safety requirements, protecting institutions such as universities from liability in case of accidents.

Types of Helmets Used in Sanitary Works

• Class C Helmets: Provide impact protection but no electrical insulation, suitable for dry work environments in retail shops.
• Class E Helmets: Designed to resist electrical hazards, ideal for sanitary installations near electrical systems at farms.
• Class G Helmets: Offer general protection with limited electrical resistance, used in office building renovations.
• Full-Brim Helmets: Provide extra protection against sun and rain, useful for outdoor sanitary layout works in cooperative farms.
• Cap Style Helmets: Lightweight and comfortable, preferred for indoor sanitary appliance layout preparation in banks.

Correct Usage and Maintenance

• Inspect helmets daily for cracks, dents or loose straps before use at sites such as county referral hospitals.
• Adjust the suspension system to fit snugly and securely on the head to prevent slipping.
• Clean helmets regularly with mild soap and water; avoid harsh chemicals that degrade materials.
• Store helmets in a cool, dry place away from direct sunlight to prevent material weakening.
• Replace helmets every 2-3 years or immediately after a significant impact.

Consequences of Not Wearing a Helmet

• Increased risk of traumatic brain injury or skull fractures during accidental falls or impacts.
• Legal penalties for non-compliance with occupational safety laws, affecting businesses like SACCOs.
• Higher insurance claims and liability costs for institutions such as universities.
• Loss of workdays due to injury, reducing productivity in retail businesses.
• Negative impact on workplace safety culture, discouraging proper safety practices.

1.1.2 Gloves

Types of Gloves and Their Applications

• Rubber Gloves: Provide chemical resistance, ideal for handling cleaning agents during sanitary appliance installation in hospitals.

• Leather Gloves: Offer protection against mechanical hazards such as sharp edges on pipes in cooperative farms.

• Cut-Resistant Gloves: Made from kevlar or similar fibers, used where sharp tools are involved, such as in hotel plumbing maintenance.

• Disposable Gloves: Used for hygiene-sensitive tasks, for example, in food service areas of universities.

• Heat-Resistant Gloves: Protect against burns during soldering or welding sanitary fittings in county government buildings.

Proper Wearing Techniques

• Select gloves that fit well; oversized gloves reduce dexterity and increase accident risk.
• Inspect gloves for holes or tears before use to ensure full protection.
• Wear gloves with wrists covered by sleeves to prevent debris entry during layout work in banks.
• Avoid touching face or personal items with contaminated gloves to reduce infection risk.
• Remove gloves by turning them inside out to prevent skin contact with contaminants.

Maintenance and Disposal

• Clean reusable gloves according to manufacturer instructions using appropriate detergents.
• Store gloves away from direct sunlight and chemicals to prevent material degradation.
• Dispose of single-use gloves in designated waste bins, especially after contact with hazardous substances in NEMA inspection sites.
• Replace gloves regularly to maintain effectiveness, especially when damaged or soiled.
• Maintain a glove inventory log to ensure availability and timely replacement in retail businesses.

Risks of Not Using Gloves

• Increased susceptibility to cuts, abrasions, and chemical burns during sanitary appliance handling.
• Cross-contamination risks in sensitive environments like hospitals and food service areas.
• Reduced grip leading to accidental drops of tools or materials, causing injuries or damage.
• Legal non-compliance leading to penalties for organizations such as SACCOs.
• Increased absenteeism due to hand injuries affecting project timelines.

1.1.3 Dustcoat / Overall

Importance in Sanitary Appliance Work

• Prevents contamination of personal clothing by dust and debris generated during pipe cutting and fitting.
• Shields skin from chemical splashes such as adhesives or solvents used in sanitary installations at schools.
• Enhances visibility when equipped with reflective strips, important for work in low-light conditions at county government offices.
• Reduces risk of transferring contaminants from site to public areas, maintaining hygiene in hospitals.
• Promotes professional appearance, enhancing confidence in client-facing environments like banks.

Types and Features

• Standard Cotton Dustcoats: Lightweight, breathable, suitable for indoor sanitary layout tasks in universities.
• Polyester Overalls: More durable and resistant to chemicals, preferred in hotel maintenance departments.

• Disposable Coveralls: Used for high-contamination tasks to prevent cross-contamination in food processing plants.

• Flame-Resistant Overalls: Provide protection during hot works like welding sanitary fittings in farms.

• High-Visibility Overalls: Used in outdoor projects such as county government water system installations.

Wearing and Care Instructions

• Ensure proper sizing for comfort and freedom of movement during appliance layout work.
• Fasten all buttons or zippers to provide full coverage and prevent dust ingress.
• Wash dustcoats regularly using mild detergents to remove contaminants without damaging fabric.
• Store in clean, dry areas to avoid mildew or fabric deterioration.
• Replace dustcoats when torn or excessively stained to maintain protection and professionalism.

Health and Safety Benefits

• Minimizes skin irritation and allergic reactions caused by dust and chemicals.
• Reduces risk of carrying hazardous materials off-site, protecting families and communities.
• Decreases likelihood of workplace accidents caused by loose clothing catching on machinery.
• Enhances compliance with workplace safety standards in institutions like SACCOs.
• Supports infection control protocols in healthcare and food service sectors.

1.1.4 Safety Boots

Protective Features of Safety Boots

• Steel Toe Cap: Shields toes from heavy falling objects or compression injuries in hospital maintenance workshops.

• Slip-Resistant Sole: Provides grip on wet or oily surfaces common in kitchens and bathrooms in hotels.

• Puncture-Resistant Midsole: Prevents sharp objects like nails or glass shards from piercing the sole in retail store renovations.
• Waterproof Materials: Keeps feet dry during outdoor sanitary system installations at farms.
• Ankle Support: Reduces risk of sprains on uneven terrain during county government water infrastructure projects.

Selection Criteria

• Choose boots compliant with Kenya Bureau of Standards (KEBS) for occupational safety.
• Select appropriate size to avoid discomfort and blisters during prolonged use in universities.
• Consider the workplace environment to decide on features like insulation or breathability for banks.
• Evaluate sole material for durability against specific site hazards such as chemicals at NEMA inspection sites.
• Confirm boots have appropriate certifications for electrical hazard protection if needed.

Usage and Maintenance

• Wear boots at all times on-site to prevent foot injuries.
• Clean boots regularly to remove mud, chemicals, and debris to prolong lifespan.
• Inspect soles and toe caps for wear or damage before each use, especially in hotel maintenance.
• Dry wet boots naturally, avoiding direct heat sources that can damage materials.
• Store boots in ventilated areas to prevent fungal infections.

Consequences of Not Wearing Safety Boots

• Increased risk of foot fractures, cuts, and puncture wounds leading to lost workdays.
• Higher chance of slips and falls causing serious injuries in workplaces like banks.
• Exposure to electrical hazards without proper insulation.
• Non-compliance penalties affecting institutions such as county government offices.
• Potential for infections from foot injuries, impacting worker health and safety.

1.1.5 Face Mask

Role in Sanitary Appliances Layout

• Filters dust particles generated during cutting and grinding of pipes in university workshops.
• Protects against inhalation of chemical vapors from adhesives used in hospitals.
• Reduces transmission of airborne pathogens in enclosed spaces like county government offices.
• Prevents inhalation of mold spores in damp areas during hotel sanitary system repairs.
• Complies with public health guidelines in retail businesses to protect workers and customers.

Types of Face Masks

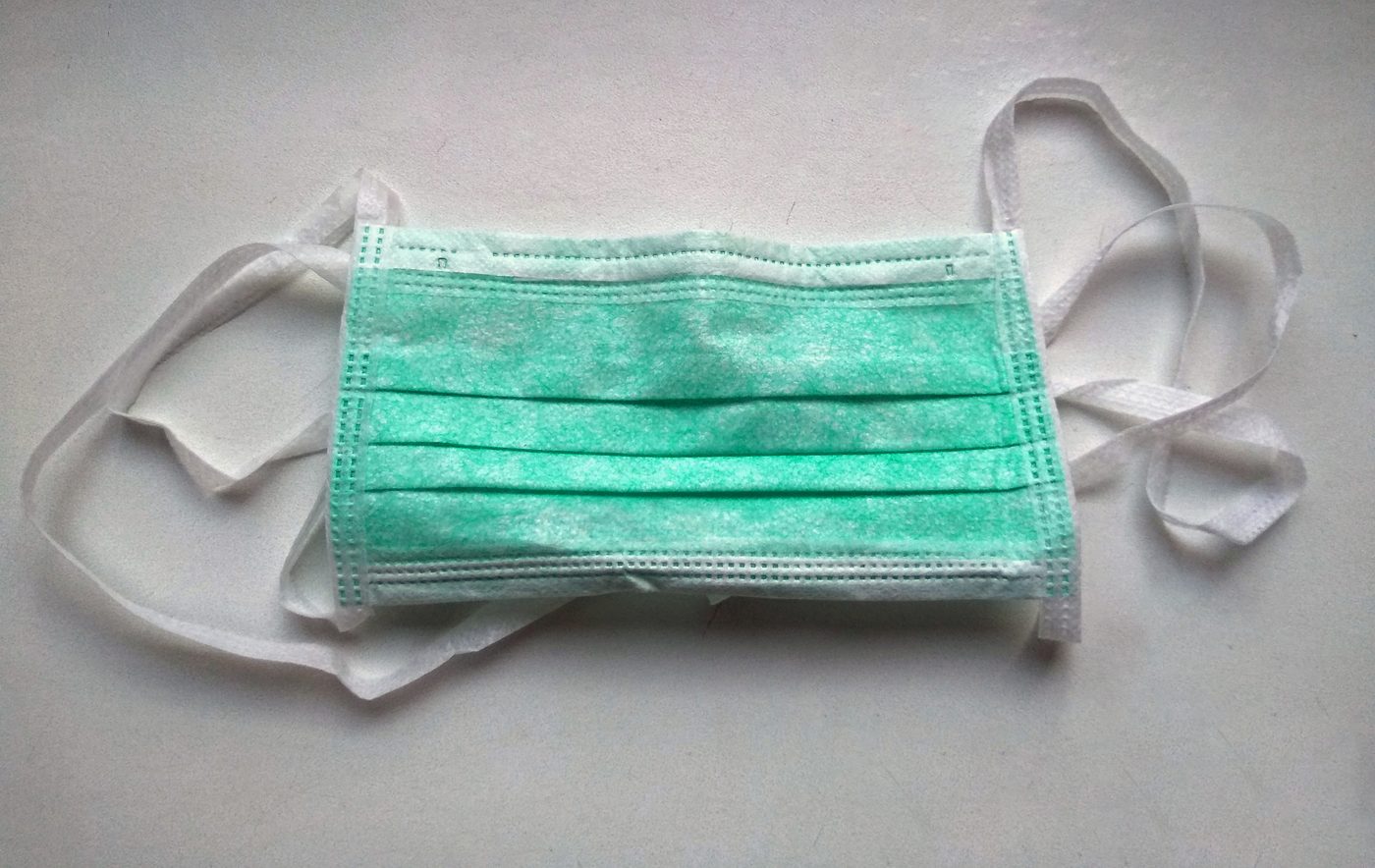

• Surgical Masks: Provide basic protection against droplets, suitable for low-dust environments in banks.

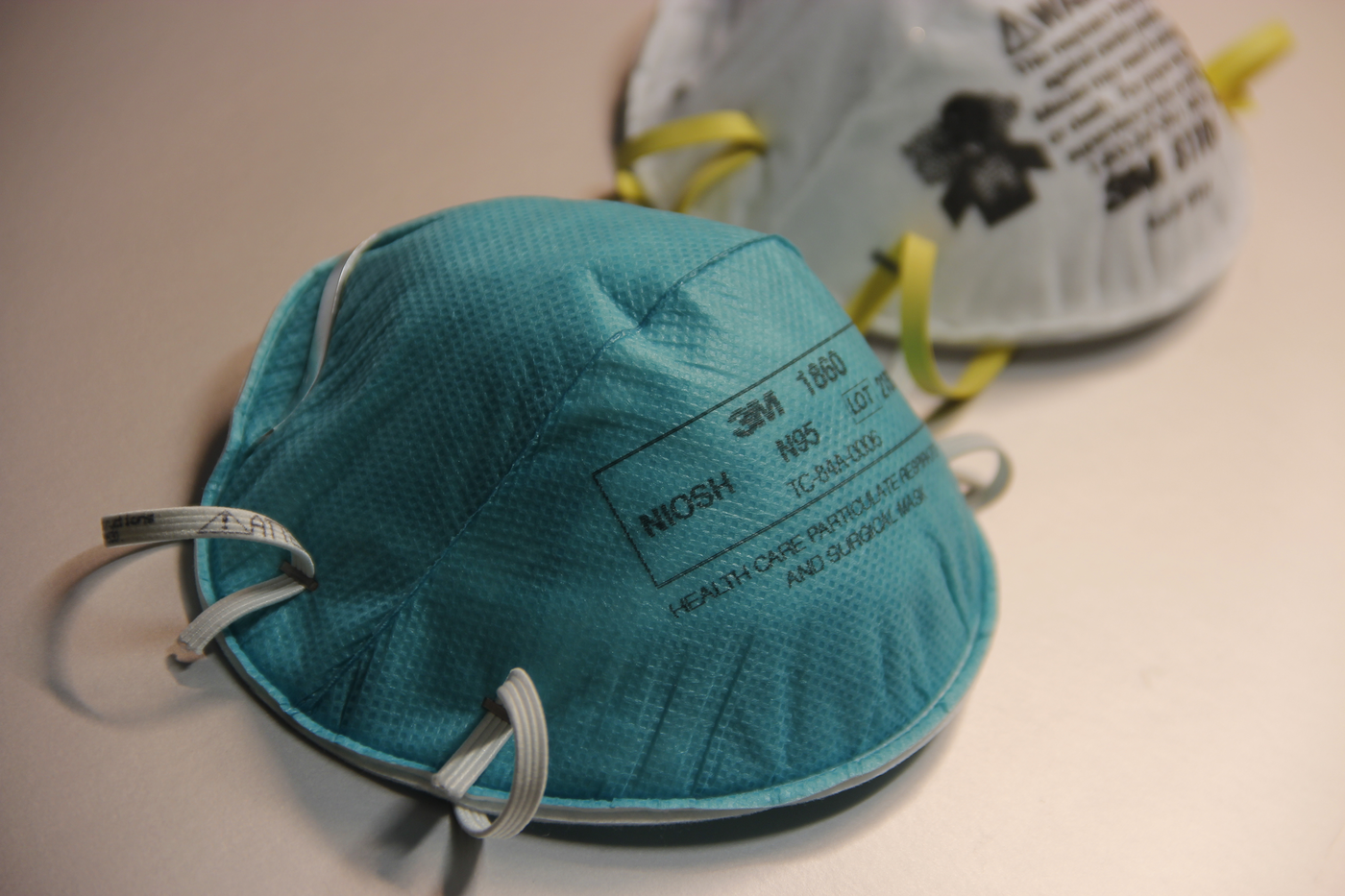

• N95 Respirators: Filter at least 95% of airborne particles, ideal for dusty or chemical-laden sites such as farms.

• Reusable Cloth Masks: Used for general protection in community settings like cooperative offices.

• Powered Air-Purifying Respirators (PAPR): Offer high-level protection in hazardous chemical exposure, used in specialized hospital units.

• Dust Masks: Protect against non-toxic dust, used in university workshops.

Proper Wearing and Care

• Ensure mask covers nose and mouth completely with secure straps.
• Avoid touching the mask surface while wearing to prevent contamination.
• Replace disposable masks after each use or when damp/soiled.
• Wash reusable masks daily with hot water and detergent.
• Store masks in clean, dry places when not in use.

Health Implications of Non-Use

• Increased risk of respiratory infections from dust, chemicals, or pathogens.
• Potential chronic respiratory conditions such as asthma or bronchitis.
• Spread of communicable diseases in shared work environments like SACCOs.
• Reduced worker productivity due to illness-related absenteeism.
• Legal non-compliance consequences for employers in Kenya.

1.1.6 Safety Goggles

Importance of Eye Protection

• Shields eyes from flying particles during drilling or cutting pipes in retail business renovations.
• Prevents chemical splashes from adhesives or solvents in hospital sanitary appliance installation.
• Reduces risk of eye irritation from dust in dusty environments like farms.
• Protects against UV exposure during outdoor sanitary system installations in cooperative farms.
• Enhances visibility with anti-fog lenses in humid areas such as hotel kitchens.

Types and Specifications

• Direct Vent Goggles: Allow airflow while protecting against dust, ideal for university workshops.
• Indirect Vent Goggles: Prevent liquid splashes, used in chemical handling at NEMA sites.
• Non-Vented Goggles: Provide full protection in hazardous chemical environments like hospitals.

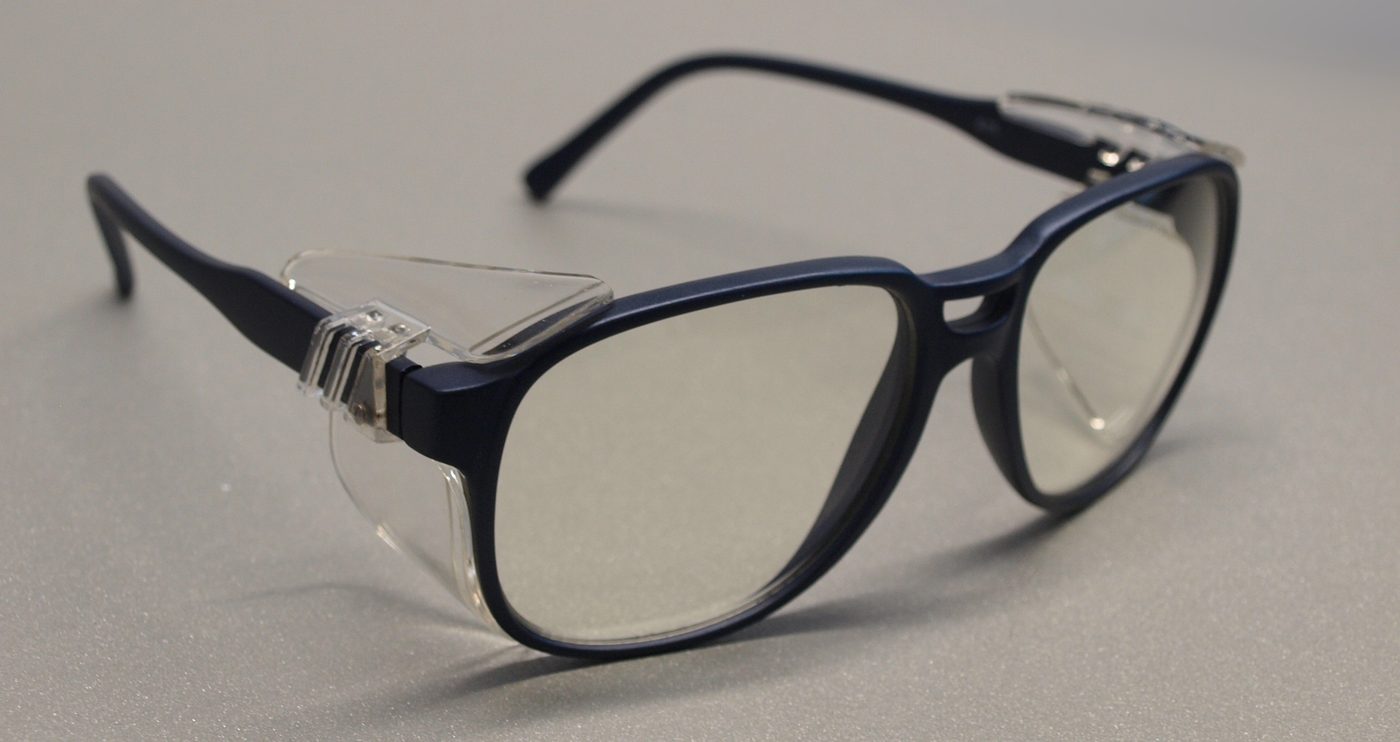

• Prescription Safety Goggles: For workers requiring vision correction in county government offices.

• Over-the-Glasses Goggles: Fit comfortably over regular spectacles for retail workers.

Correct Usage and Maintenance

• Adjust straps for a snug fit without pressure points to ensure comfort.
• Clean lenses with soft cloth and appropriate cleaner to maintain clarity.
• Inspect for scratches or cracks that may impair vision and replace if damaged.
• Store in protective cases to avoid lens damage when not in use.
• Avoid sharing goggles to reduce infection risk.

Risks of Neglecting Eye Protection

• Eye injuries such as cuts, burns, or foreign body penetration.
• Temporary or permanent vision impairment affecting ability to work.
• Increased treatment costs and lost work time in sectors such as SACCOs.
• Legal liabilities for organizations failing to enforce PPE use.
• Lowered workplace safety standards, increasing accident rates.

1.1.7 Ear Muffs

Need for Hearing Protection

• Construction and cutting tools used in sanitary appliance installation generate high noise levels in hospital maintenance areas.
• Prolonged exposure to loud noise can cause permanent hearing loss among workers in university workshops.
• Protects workers in noisy environments such as county government water system construction sites.
• Reduces fatigue and increases concentration by minimizing noise distractions in retail business renovations.
• Complies with occupational health and safety regulations protecting workers in SACCO office refurbishments.

Types and Features

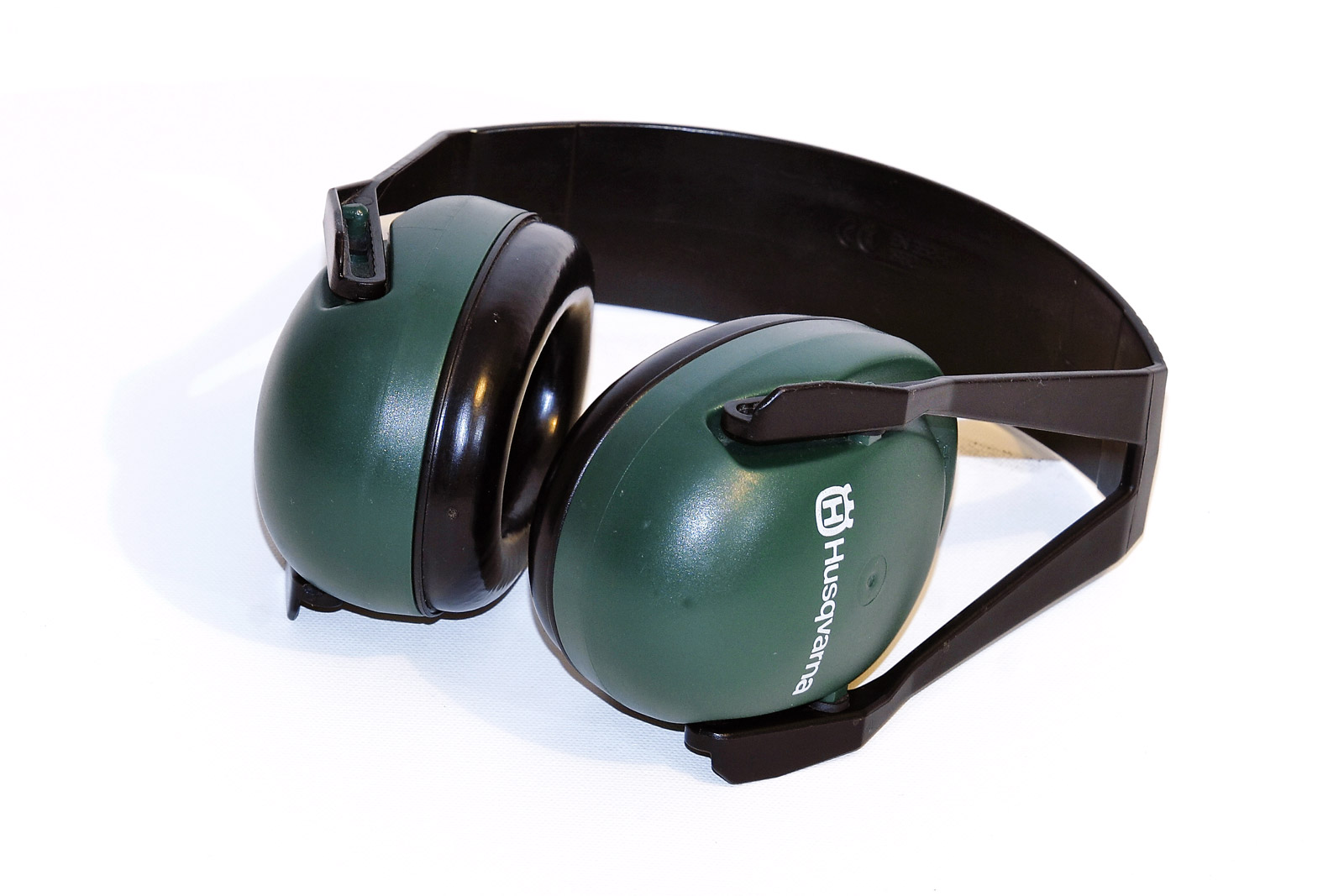

• Passive Ear Muffs: Use sound-absorbing materials to reduce noise, suitable for most sanitary installation tasks.

• Electronic Ear Muffs: Amplify low-level sounds while blocking loud noises, useful in county government offices.

• Ear Cups with Cushioned Seals: Enhance comfort for extended wear during long shifts in cooperative farms.

• Adjustable Headbands: Allow fitting to different head sizes for secure protection in hotels.
• Foldable Designs: For easy storage and transport in fieldwork settings.

Proper Use and Maintenance

• Position ear muffs fully covering ears to achieve maximum noise reduction.
• Adjust headband tension to avoid discomfort while maintaining seal.
• Clean ear cushions regularly to prevent skin irritation and maintain hygiene.
• Inspect for cracks or wear and replace damaged parts promptly.
• Store in protective cases away from extreme temperatures.

Consequences of Ignoring Hearing Protection

• Permanent noise-induced hearing loss affecting communication and quality of life.
• Increased stress and fatigue leading to reduced productivity in workplaces like banks.
• Higher risk of accidents due to impaired hearing of warning signals.
• Increased medical expenses and compensation claims for employers.
• Negative impact on workplace morale and safety culture.

Chapter Summary

This chapter covers essential aspects of preparing sanitary appliances layout schematic drawings, beginning with the importance of using personal protective equipment such as helmets, gloves, dustcoats, safety boots, face masks, safety goggles, and ear muffs to ensure safety during work. It then explores detailed working drawings of various sanitary appliances including wash hand basins, water closets, bath tubs, urinals, bidets, kitchen sinks, jacuzzis, shower heads, cisterns, instant showers, and shower trays. The chapter also highlights the critical drawing instruments needed for accurate layouts, such as set squares, T squares, protractors, dividers, and compasses. Understanding measurement conversions is emphasized to maintain precision in scaling and dimensions. Standard symbols used in sanitary appliance drawings are introduced to facilitate clear communication and uniformity. Finally, the chapter guides students on sketching installation layouts that integrate all these elements into coherent, practical plans.
