Security systems installation is a critical specialization within electronics engineering, demanding precision and adherence to technical standards. In Kenya, where security concerns are rising in urban and rural areas alike, professionals must design and install robust security systems that incorporate reliable cabling infrastructure. This chapter delves into the types of cables used in security systems and the essential considerations when laying these cables, ensuring optimal performance and durability. Mastery of these topics enables electronics engineers to effectively support institutions such as banks, county government offices, hospitals, and retail businesses with secure and resilient installations.
2.1 Types of cables in security system
In security systems, the choice of cable significantly influences system reliability, signal integrity, and resistance to environmental hazards. Electronics engineers in Kenya face diverse conditions, from high-humidity coastal regions to dusty arid zones in northern counties, which affect cable selection. Understanding the characteristics and appropriate applications of various cable types helps engineers tailor systems to specific security needs, whether for CCTV, access control, or alarm systems.
2.1.1 Coaxial Cables: Construction and Usage
Coaxial cables are widely used in video surveillance systems for transmitting analog signals with minimal interference. They consist of a central conductor, insulating layer, metallic shield, and outer jacket, providing excellent protection against electromagnetic interference (EMI).
Construction Features
-
Central conductor: Usually copper, responsible for carrying the signal.
-
Dielectric insulator: Separates the conductor and shield, maintaining signal integrity.
-
Metallic shield: Prevents external EMI from distorting the signal.
- Outer jacket: Protects the cable from physical damage and environmental factors.
Coaxial cables such as RG59 and RG6 are commonly deployed in CCTV installations in Kenyan retail outlets and county government offices due to their durability and ability to carry video signals over moderate distances without significant loss.
2.1.2 Twisted Pair Cables: Types and Applications
Twisted pair cables are preferred for data transmission in access control and alarm systems, particularly when using digital communication protocols.
Types of Twisted Pair Cables
-
Unshielded Twisted Pair (UTP): Economical and easy to install, ideal for short-distance data transmission in office environments like banks and schools.
-
Shielded Twisted Pair (STP): Contains an additional shielding layer to reduce EMI, suitable for industrial or noisy electrical environments such as hospitals.
-

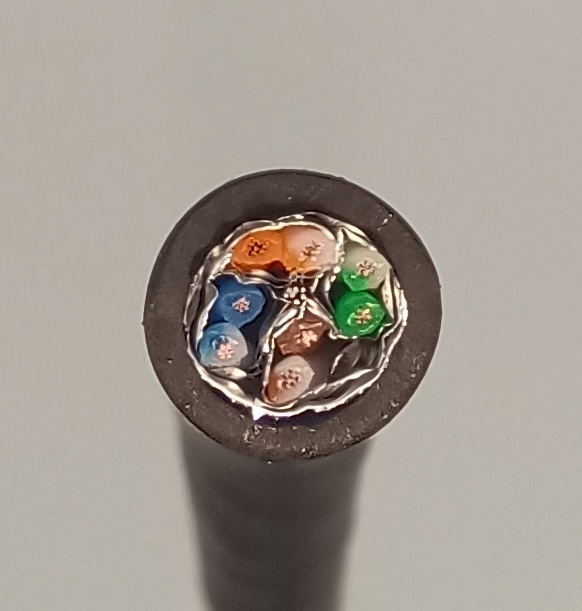

Foiled Twisted Pair (FTP): Features foil shielding around all pairs, enhancing protection against interference in high-density installations.
Twisted pair cables facilitate networked security components, supporting protocols such as RS-485 and Ethernet, which are integral to modern IP-based security systems.
2.1.3 Fiber Optic Cables: Advantages and Deployment
Fiber optic cables transmit security system signals using light, offering superior bandwidth and immunity to electromagnetic interference, making them ideal for long-distance and high-security installations.
Advantages of Fiber Optic Cables
- High bandwidth: Supports high-resolution CCTV and complex data streams.
- Immunity to EMI: Suitable for environments with heavy electrical machinery, such as manufacturing plants or hospitals.
- Long-distance transmission: Can span several kilometers without signal degradation, beneficial for large campuses or county-wide surveillance networks.
- Enhanced security: Difficult to tap without detection, ensuring data integrity.
In Kenyan universities and large corporate campuses, fiber optic cables are increasingly used to connect multiple security system nodes, providing robust and scalable infrastructure.
2.1.4 Power Cables in Security Systems
Power cables supply electricity to security devices such as cameras, sensors, and control panels. Their selection depends on voltage requirements and environmental conditions.
Characteristics of Power Cables
- Conductor material: Copper is preferred for its conductivity and durability.
-

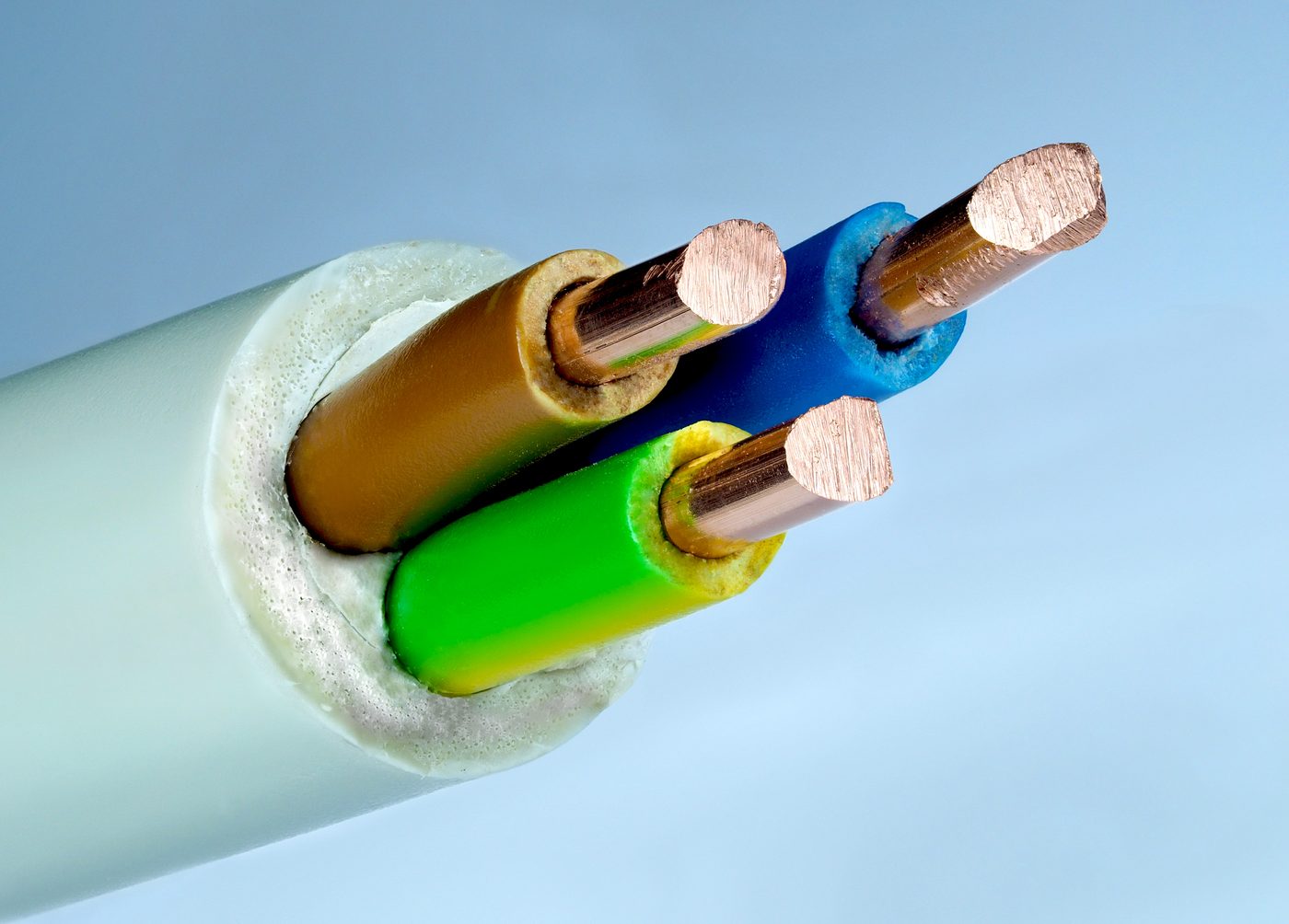

Insulation: Must withstand environmental factors, including moisture and temperature fluctuations.
-
Voltage rating: Must match the security device’s power needs, typically low voltage (12V or 24V DC) for most security components.
2.1.5 Alarm Cables: Specialized Features
Alarm cables are designed specifically for low-voltage signaling in alarm and intrusion detection systems. They combine multiple conductors and shielding to prevent false alarms caused by electrical noise.
Specialized Features
- Multi-core design: Facilitates connection of multiple sensors and zones.
- Shielding: Reduces interference from nearby electrical installations.
- Flame retardant jackets: Enhance safety in case of fire.
In institutions such as county government offices, alarm cables ensure reliable transmission of sensor signals to control panels, maintaining security integrity.
Practice Questions
- Describe the construction of a coaxial cable and explain why it is suitable for CCTV installations. (10 marks)
- Compare and contrast UTP and STP twisted pair cables in terms of their applications in security systems. (10 marks)
- List five advantages of fiber optic cables in security system installations. (10 marks)
- Explain the importance of selecting the correct power cable for outdoor security cameras in a hotel setting. (10 marks)
- What features make alarm cables suitable for intrusion detection systems in county government offices? (10 marks)
The rest of this chapter
🔒Create a free account to open more of this chapter.
Free: practical guides, quick cards, workplace scenarios and more.
Create a free account 🔒2.2 Factors to consider in security system cable laying
Cable laying is a critical phase in security system installation, as improper methods can compromise system performance and longevity. Electronics engineers in Kenya must navigate challenges such as diverse climatic conditions, infrastructure constraints, and…
🔒2.3 Segregation in Cable Laying
In the installation of security systems, proper cable segregation is vital to ensure system reliability, reduce interference, and enhance safety. Kenyan electronics engineers working on projects in hospitals, county government offices, or retail businesses mus…
🔒2.4 Security System Installation
Installing security systems involves integrating various electronic components such as sensors, control panels, cameras, and alarms to safeguard premises. Electronics engineers in Kenya must balance technical precision, compliance with standards, and client re…
🔒2.5 CCTV System
Closed-Circuit Television (CCTV) systems are central to security infrastructure in Kenya’s commercial, industrial, and public institutions. Their role in surveillance, crime deterrence, and evidence gathering makes them indispensable in environments such as ba…
🔒2.6 Specification of Tools, Equipment and Materials
Specifying the correct tools, equipment, and materials is critical for the successful installation and maintenance of security systems. In the Kenyan electronics engineering context, specifications must consider tolerances, make and model, size, and class to e…
🔒2.7 Wiring CCTV System
Wiring a CCTV system is a critical task in security systems installation that directly affects the system's functionality and reliability. In Kenya, where security concerns in urban and rural settings are rising, proper wiring ensures that surveillance cameras…
🔒2.8 Alarm Systems
Alarm systems are integral to electronic security, providing early warnings for fire outbreaks or unauthorized intrusions. In Kenya, alarm installations in institutions like hospitals, hotels, and county government offices enhance safety and protect assets. Th…
🔒2.9 Identification of materials and components
In the installation of security systems, selecting appropriate materials and components is crucial for ensuring system reliability, longevity, and compliance with Kenyan safety standards. Electronics engineers must understand the specifications and functions o…
🔒2.10 Specification of Tools, Equipment and Materials
In the installation of security systems, precise specification of tools, equipment, and materials is crucial to ensure system reliability, safety, and compliance with Kenyan standards. Electronics engineers must select components that meet defined parameters s…
🔒2.11 Wiring Bell and Alarm System
The wiring of bell and alarm systems in Kenya requires careful planning and execution to ensure safety, reliability, and compliance with local electrical standards. Electronics engineering professionals involved in security system installations must understand…
🔒2.12 Electric Fence
Electric fences provide a vital physical and psychological deterrent for securing premises, particularly in rural and semi-urban areas of Kenya where livestock theft and unauthorized access are common challenges. For electronics engineers specializing in secur…
🔒2.13 Identification of Materials and Components
Successful installation of security systems relies heavily on selecting the correct materials and components tailored to the specific security application. Electronics engineers in Kenya must be proficient in identifying and sourcing quality cables, conduits,…
🔒2.14 Specification of Tools, Equipment and Materials
In the installation of security systems, precise specification of tools, equipment and materials is critical to ensure system reliability, safety and compliance with Kenyan standards. Electronics engineering professionals must select components that meet requi…
🔒2.15 Wiring electric fence system
Electric fencing is a critical component in security systems, widely used in Kenya for perimeter protection of properties such as farms, warehouses, and industrial facilities. Proper wiring ensures the system delivers a consistent electric pulse that deters in…
🔒2.16 Insulation Classes of Enclosures
In the installation of security systems, selecting the appropriate enclosure protection level is critical to ensure durability, safety, and optimal functioning of electronic components. In Kenya, varying environmental conditions such as dust, humidity, and occ…
🔒2.17 Cable labelling
In security systems installation, precise cable labelling is an essential practice that facilitates system maintenance, troubleshooting, and future upgrades. In the Kenyan electronics engineering sector, where installations occur in complex environments such a…
🔒2.18 Cable termination
Cable termination is the process of properly connecting the end of a cable to a device, connector, or terminal block to ensure reliable electrical and signal transmission. In the Kenyan electronics engineering field, especially within security systems installa…
🔒2.19 Tools used in cable termination
In the installation of security systems, proper cable termination is crucial for system reliability and signal integrity. Electronics engineers in Kenya working on security installations rely on specific tools to prepare cables, strip insulation, and connect w…
🔒2.20 Security system integration with other components
Integrating security systems with other building management and electronic systems enhances overall facility safety and operational efficiency. For Kenyan electronics engineers, this integration often involves combining CCTV, access control, alarm systems, and…
🔒2.21 Housekeeping Practices Practical Content
Housekeeping in the context of security systems installation is a critical aspect that ensures not only safety but also operational efficiency on site. In Kenya, electronics engineers working in environments ranging from county government offices to commercial…
🔒2.22 Install Security System
Installing a security system is a complex process that involves careful planning, precise execution, and adherence to technical standards. Electronics engineers in Kenya working in diverse sectors such as hotels, educational institutions, and cooperative socie…
🔒2.23 CCTV System
In Kenya, Closed Circuit Television (CCTV) systems have become essential components of modern security infrastructure across various sectors such as corporate offices, banks, hospitals, and educational institutions. The increasing need for surveillance to dete…
🔒2.24 Alarm Systems
Alarm systems form a critical layer of security by providing immediate alerts during unauthorized access, fire outbreaks, or other emergencies. In Kenya, alarm installations are widespread in commercial buildings, banks, and residential estates to enhance safe…
🔒2.25 Electric Fence System
Electric fencing is a critical security measure widely employed in Kenya to protect commercial premises, farms, and public facilities. In electronics engineering, installing an electric fence system involves integrating high-voltage pulse generators with physi…
🔒2.26 Coding/Configuring Security System
Coding and configuring security systems is a vital phase in electronics engineering installations, especially in Kenya where tailored solutions address diverse security needs in banks, hospitals, and government offices. Proper configuration ensures that alarm…
🔒2.27 Proper disposal of waste material Practical content
In the installation of security systems, proper disposal of waste material is critical for environmental protection, workplace safety, and regulatory compliance. Electronics engineering professionals in Kenya must adhere to national laws such as the Environmen…
🔒2.28 Install security system
Installing a security system involves precise technical and safety procedures tailored to the environment where the system will operate. Electronics engineers in Kenya deploy these systems across diverse sectors such as banks, schools, hospitals, and retail bu…
🔒2.29 Coding Security System
Coding security systems is a critical aspect of modern electronic security installations in Kenya, especially as organizations demand higher levels of protection against unauthorized access and cyber threats. This process involves programming and configuring s…
🔒2.30 Proper Disposal of Waste Material
Proper disposal of waste material generated during security system installation is essential for environmental protection and compliance with Kenyan regulations. Electronics engineers working in the field must manage waste such as cables, packaging, batteries,…
Chapter Summary
This chapter explored the various types of cables used in security systems and the critical factors to consider when laying these cables, including the importance of segregation to prevent interference and maintain system integrity. It detailed the installation process of security systems with a focus on CCTV, identifying essential components such as cables, conduits-trunking, and backup systems for both data and power. Specifications for tools, equipment, and materials were examined, highlighting the importance of tolerance, make, size, and class to ensure quality and compatibility. The chapter also covered the wiring of CCTV systems through schematic and wiring diagrams, before introducing alarm systems, including fire and burglar alarms, and the materials and components involved. Further emphasis was placed on the wiring of bell and alarm systems, describing the various components like transformers, relays, control panels, and sounders, along with power supply considerations. Electric fence systems were introduced with identification of their materials, components, and wiring methods. The chapter concluded with discussions on insulation classes of enclosures for protection, cable labelling and termination techniques, and the tools required for these tasks. Finally, it addressed the integration of security systems, good housekeeping practices during installation, coding and configuring systems, and the proper disposal of waste materials to maintain safety and environmental standards.
Self-Assessment
🔒 PDFDownload this self-assessment, with answers
A. Written Assessment
- Identify five types of cables commonly used in security system installations and explain one key characteristic of each. (10 marks)
- List and explain four factors to consider when laying cables for a security system in a commercial building. (8 marks)
🔒20 more in this section.
Chapter Examination Questions
🔒 PDFDownload these examination questions, with model answers
SECTION A (40 Marks) - Answer ALL Questions
- Identify five common types of cables used in security systems installation and explain one key advantage of each in a Kenyan electronics engineering context. (4 marks)
- Describe four factors an electronics engineer should consider when laying cables for a security system in a Nairobi county government building. (4 marks)
🔒18 more in this section.
Chapter Practical Activities
Practical 1: Identify and select cables for a security system installation
Electronics Engineering · Level 5
Security Systems Installation
PRACTICAL ASSESSMENT
TIME: 4 HOURS
⬇ PDFCandidate Instructions (Candidate Tool)
Type: Individual
INSTRUCTIONS TO CANDIDATE:
1. You are required to perform the following task:
i. Identify and select appropriate cables for a security system installation including CCTV and alarm wiring totaling approximately 30 meters with specifications as per Kenyan standards.
2. You have been provided with the following resources for the practical task:
| Tools & Equipment | Materials |
|---|
| Cable cutter | Coaxial cable RG59 |
| Wire stripper | Twisted pair cable UTP Cat5e |
| Multimeter | Power cable 2.5mm² PVC insulated |
| Cable tester | Alarm cable 4-core 0.5mm² |
| Label markers | |
| Personal Protective Equipment (Safety boots, Gloves) | |
⬇ PDFResources Required (Cutting List)
| S/N | Item | Quantity |
|---|
| 1 | Coaxial cable RG59 | 20 meters per Candidate |
| 2 | Twisted pair cable UTP Cat5e | 30 meters per Candidate |
| 3 | Power cable 2.5mm² PVC insulated | 15 meters per Candidate |
| 4 | Alarm cable 4-core 0.5mm² | 25 meters per Candidate |
| 5 | Cable cutter | 1 per Candidate |
| 6 | Wire stripper | 1 per Candidate |
| 7 | Multimeter | 1 per Candidate |
| 8 | Cable tester | 1 per 2 Candidates |
| 9 | Label markers | 1 set per Candidate |
| 10 | Personal Protective Equipment (Safety boots, Gloves) | 1 set per Candidate |
⬇ PDFAssessor Guide
| Items to be Evaluated | Marks Available | Marks Obtained | Comments |
|---|
| TASK 1: Safety and preparation |
Wore Personal Protective Equipment (Safety boots and gloves)
(Award 2 marks or 0) | 2 | | |
Ensured clean and safe working area before starting
(Award 1 mark or 0) | 1 | | |
| Sub-Total | 3 | | |
| TASK 2: Identification and selection of cables |
Correctly identified coaxial cable RG59 for CCTV video transmission
(Award 3 marks or 0) | 3 | | |
Correctly identified twisted pair UTP Cat5e cable for data and alarm signal transmission
(Award 3 marks or 0) | 3 | | |
Selected appropriate power cable (2.5mm² PVC insulated) for powering security devices
(Award 2 marks or 0) | 2 | | |
Selected correct alarm cable (4-core 0.5mm²) for alarm system wiring
(Award 2 marks or 0) | 2 | | |
| Sub-Total | 10 | | |
| TASK 3: Cable preparation and testing |
Used cable cutter and wire stripper correctly without damaging cables
(Award 2 marks or 0) | 2 | | |
Performed continuity test using multimeter on selected cables
(Award 3 marks or 0) | 3 | | |
Tested correct wiring and integrity using cable tester
(Award 3 marks or 0) | 3 | | |
Properly labeled cables for identification
(Award 2 marks or 0) | 2 | | |
| Sub-Total | 10 | | |
| PRODUCT CHECKLIST |
Selected cables meet the specified types and quantities: RG59 (20m), UTP Cat5e (30m), power cable 2.5mm² (15m), alarm cable 4-core 0.5mm² (25m)
(Award 5 marks or 0) | 5 | | |
Cables are correctly identified, labeled, and free from damage
(Award 4 marks or 0) | 4 | | |
| Sub-Total | 9 | | |
| GRAND TOTAL | 32 | | |
ASSESSMENT OUTCOME: ☐ Competent ☐ Not Yet Competent (competent if at least 50%)
Practical 2: Plan and Execute Security System Cable Laying with Proper Segregation
Electronics Engineering · Level 5
Security Systems Installation
PRACTICAL ASSESSMENT
TIME: 5 HOURS
⬇ PDFCandidate Instructions (Candidate Tool)
Type: Individual
INSTRUCTIONS TO CANDIDATE:
1. You are required to perform the following task:
i. Plan and install security system cables along a 10m horizontal wall segment ensuring proper segregation of power and data cables as per standards.
2. You have been provided with the following resources for the practical task:
| Tools & Equipment | Materials |
|---|
| Multimeter digital | 50m 4-core CCTV cable (RG59 coaxial with power conductors) |
| Cable stripper and cutter | 50m Cat6 UTP cable for data transmission |
| Screwdriver set | 25m 2-core power cable 1.5mm2 PVC insulated |
| Measuring tape 5m | PVC mini-trunking 2.5m lengths |
| Marker pen | Cable clips (plastic) |
| PVC conduit 20mm diameter |
| Cable ties |
| PVC electrical tape rolls |
| Personal Protective Equipment (safety boots, gloves, dust coat) |
⬇ PDFResources Required (Cutting List)
| S/N | Item | Quantity |
|---|
| 1 | 50m 4-core CCTV cable (RG59 coaxial with power conductors) | 50 meters per Candidate |
| 2 | 50m Cat6 UTP cable for data transmission | 50 meters per Candidate |
| 3 | 25m 2-core power cable 1.5mm2 PVC insulated | 25 meters per Candidate |
| 4 | PVC mini-trunking 2.5m lengths | 3 lengths per Candidate |
| 5 | Cable clips (plastic) 20 pcs | 20 pcs per Candidate |
| 6 | PVC conduit 20mm diameter | 3 meters per Candidate |
| 7 | Cable ties 50 pcs | 50 pcs per Candidate |
| 8 | PVC electrical tape rolls | 1 roll per Candidate |
| 9 | Personal Protective Equipment (safety boots, gloves, dust coat) | 1 set per Candidate |
| 10 | Multimeter digital | 1 per Candidate |
| 11 | Cable stripper and cutter | 1 per Candidate |
| 12 | Screwdriver set | 1 set per Candidate |
| 13 | Measuring tape 5m | 1 per Candidate |
| 14 | Marker pen | 1 per Candidate |
⬇ PDFAssessor Guide
| Items to be Evaluated | Marks Available | Marks Obtained | Comments |
|---|
| TASK 1: Preparation and Safety Compliance |
Wore Personal Protective Equipment (safety boots, gloves, dust coat)
(Award 2 marks or 0) | 2 | | |
Ensured clean and safe working area before starting
(Award 2 marks or 0) | 2 | | |
Identified and selected appropriate tools and materials
(Award 2 marks or 0) | 2 | | |
| Sub-Total | 6 | | |
| TASK 2: Planning and Layout |
Measured and marked the 10m cable route on the wall correctly
(Award 3 marks or 0) | 3 | | |
Drew a clear installation wiring diagram showing cable segregation
(Award 4 marks or 0) | 4 | | |
Planned segregation of power and data cables as per standards (minimum 50mm separation)
(Award 3 marks or 0) | 3 | | |
| Sub-Total | 10 | | |
| TASK 3: Cable Laying and Fixing |
Laid CCTV coaxial cable and power cable separately with proper segregation
(Award 4 marks or 0) | 4 | | |
Fixed PVC mini-trunking straight and horizontally along the marked route
(Award 3 marks or 0) | 3 | | |
Used cable clips and ties spaced uniformly (clips at max 300mm intervals)
(Award 3 marks or 0) | 3 | | |
Installed power cables inside PVC conduit where crossing data cables
(Award 3 marks or 0) | 3 | | |
| Sub-Total | 13 | | |
| TASK 4: Cable Termination and Testing |
Performed proper cable terminations using correct color codes
(Award 4 marks or 0) | 4 | | |
Tested continuity of cables using multimeter
(Award 4 marks or 0) | 4 | | |
Verified absence of interference between segregated cables
(Award 3 marks or 0) | 3 | | |
| Sub-Total | 11 | | |
| PRODUCT CHECKLIST |
Cable route length is 10m ± 0.1m, cables properly segregated (minimum 50mm apart), and fixed securely with neat arrangement
(Award 10 marks or 0) | 10 | | |
Installation wiring diagram matches the physical layout and shows segregation clearly
(Award 5 marks or 0) | 5 | | |
| Sub-Total | 15 | | |
| GRAND TOTAL | 55 | | |
ASSESSMENT OUTCOME: ☐ Competent ☐ Not Yet Competent (competent if at least 50%)
🔒Install CCTV System Components and WiringPractical 3
🔒Interpret and wire a CCTV system as per schematic and wiring diagramsPractical 4
🔒Installation and Wiring of Fire and Burglar Alarm SystemsPractical 5
🔒Identify and install alarm system components with backup powerPractical 6
🔒Installation of Bell and Alarm System ComponentsPractical 7
🔒Install and test 240VAC and 12VAC power supplies for security systemPractical 8
🔒Install electric fence system components and wiring for a 20m perimeterPractical 9
🔒Interpret and Wire an Electric Fence System as per Schematic DiagramPractical 10
🔒Perform cable termination and labeling for a security systemPractical 11
🔒Assess and Install Security Enclosures with Specified IP Protection ClassesPractical 12
🔒Integrate a Security System with CCTV and Intruder Alarm ComponentsPractical 13
🔒Code and Configure a Security Alarm Control Panel 400mm x 300mmPractical 14
🔒Practice housekeeping and proper disposal of waste materials after security system installationPractical 15
