4.1 Special Semiconductor Devices

Special semiconductor devices include thyristor family members and related components designed to control electrical power and signals with precision. These devices often operate under conditions where conventional transistors are unsuitable, such as high voltage or high current environments. Their unique switching and latching properties make them indispensable in power electronics, motor control, and protected switching circuits found in Kenyan industries and infrastructure.

4.1.1 SCR (Silicon Controlled Rectifier)

The Silicon Controlled Rectifier (SCR) is a four-layer, three-junction semiconductor device widely used for controlling power in AC and DC circuits. Kenyan engineers encounter SCRs in motor drives, lighting control, and industrial heating systems where precise control of large currents is necessary. Understanding SCR operation, triggering methods, and applications is fundamental for designing robust power electronics.

Construction and Operation

SCRs consist of alternating layers of P-type and N-type semiconductor materials forming a PNPN structure. This four-layer arrangement creates three junctions labeled J1, J2, and J3. The device has three terminals: anode, cathode, and gate. Under forward bias, the SCR remains off until a gate current triggers it into conduction, allowing current to flow from anode to cathode. The SCR latches on even if the gate current is removed, requiring the current to drop below a holding level to turn off.

Triggering Methods

SCRs can be triggered into conduction by various methods to suit different applications:

• Gate triggering: Applying a positive current pulse to the gate terminal initiates conduction.
• Voltage triggering: Increasing the anode voltage beyond a breakover value causes the SCR to switch on without gate input.
• Temperature triggering: Elevated temperatures can cause the device to turn on unintentionally, thus requiring thermal management.
• Light triggering: Some SCRs respond to light exposure on the gate region for isolation applications.
• dv/dt triggering: Rapid voltage changes across the device can inadvertently trigger conduction.

Characteristics and Ratings

The SCR exhibits a unidirectional current flow and controlled switching behavior. Key parameters include:

• Forward breakover voltage: The minimum voltage to switch on without gate current.
• Gate trigger current: The minimum gate current required to turn on the SCR.
• Holding current: The minimum anode current to maintain conduction.
• Peak forward current: The maximum current the SCR can conduct without damage.
• Repetitive peak off-state voltage: The maximum reverse voltage the SCR can block repeatedly.

Ratings

TRIAC ratings determine their suitability for various Kenyan AC power control applications:
- Repetitive Peak Off-State Voltage (V_DRM): The maximum voltage the TRIAC can block repeatedly, such as 600V for use in hotel lighting dimmers in Nairobi.
- RMS On-State Current (I_T(RMS)): The maximum root mean square current the TRIAC can conduct continuously, for example 16A in industrial bakery heater controls.
- Gate Trigger Current (I_GT): The minimum current needed to trigger the TRIAC, typically 35mA, which must be matched to the output of control electronics in Safaricom’s data centers.
- Surge Current (I_TSM): The highest current the device can handle for a short duration, important in applications like water pump controllers at county government installations.
- Thermal Resistance (R_thJC): Measures the device’s ability to dissipate heat, crucial in high-power applications such as air conditioning systems in large office buildings.

Ratings

SCR ratings are critical for selecting devices suitable for Kenyan industrial applications.
- Maximum Repetitive Peak Off-State Voltage: This is the highest reverse voltage the SCR can withstand repeatedly without breakdown. For example, SCRs used in KenGen power stations must handle up to 800V due to grid surges.
- Average On-State Current: The maximum continuous current the SCR can conduct without overheating, such as 25A in Nairobi County street lighting controllers.
- Surge Current Rating: The peak current the SCR can tolerate for a short period, important in battery chargers at Kenyatta National Hospital where inrush currents occur.
- Gate Trigger Voltage and Current: The minimum voltage and current required at the gate to reliably trigger the SCR, typically 1.5V and 20mA, ensuring compatibility with control circuits in manufacturing automation.
- Thermal Resistance: Indicates how well the SCR dissipates heat, a key factor in installations at Mombasa Port where ambient temperatures are high.

Applications in Kenya

SCRs are extensively used in Kenyan industries for:

• Motor speed control: In manufacturing plants, SCR-based controllers regulate DC motor speeds.
• Power rectification: SCRs convert AC to DC in battery charging systems at hospitals.
• Lighting dimmers: Hotels use SCR dimmer circuits to control lighting intensity efficiently.
• Overvoltage protection: County government water pumping stations employ SCRs in crowbar circuits to protect transformers from surges.

4.1.2 LASCR (Light-Activated Silicon Controlled Rectifier)

The LASCR is a variant of the SCR that uses light to trigger conduction, offering electrical isolation and remote control capabilities. Kenyan engineers working on isolated control systems and optoelectronic interfaces find LASCRs practical for safety and noise immunity.

Structure and Light Activation Principle

LASCRs incorporate a photosensitive gate region that responds to incident light photons. The device structure integrates a transparent window or fibre optic interface allowing light to reach the gate junction. When illuminated, electron-hole pairs are generated, triggering the device into conduction without electrical gate input.

Advantages Over Conventional SCRs

LASCRs provide several benefits in specific applications:

• Electrical isolation: Triggering via light eliminates direct electrical connection, enhancing operator safety.
• Noise immunity: Optical triggering reduces susceptibility to electrical noise in industrial environments.

• Remote control: LASCRs enable triggering from physically separated control points, useful in hazardous areas.

• Fast response: Light activation allows rapid switching suitable for pulse circuits.

• Reduced interference: Optical triggering prevents ground loops and electromagnetic interference.

Typical Applications

In Kenya, LASCRs are found in:

• Remote switching systems: County electrical substations use LASCRs for isolating control panels.
• Safety interlock circuits: Industrial plants employ LASCRs to ensure safe machine operation.
• Optically controlled power devices: Renewable energy installations utilize LASCRs for remote inverter control.
• Medical equipment: Hospitals use LASCRs in electrically isolated patient monitoring circuits.
• Telecommunications: LASCRs help protect sensitive line equipment from high voltage surges.

Limitations and Precautions

While LASCRs offer advantages, they also have constraints:

• Light source dependency: Reliable triggering requires stable and sufficient light intensity.
• Cost: LASCRs are usually more expensive than standard SCRs.
• Environmental sensitivity: Dust or dirt on the light window can impair operation.
• Temperature effects: High temperatures may affect photosensitivity.
• Complex packaging: Integration into circuits requires careful optical alignment.

4.1.3 TRIAC (Triode for Alternating Current)

The TRIAC is a bidirectional semiconductor device that controls AC power by switching current in both directions, widely used in variable power controls. Kenyan electronic engineers apply TRIACs in lighting, heating, and motor speed regulation where AC loads require phase control.

Construction and Working Principle

TRIACs consist of a symmetrical four-layer structure with three terminals: MT1, MT2 (main terminals), and gate. Unlike SCRs, TRIACs can conduct current in both directions when triggered. Triggering the gate terminal causes the device to latch on, allowing current flow until the AC waveform passes through zero, where it turns off naturally.

Triggering Modes

TRIACs can be triggered in four quadrants depending on the polarity of the main terminals and gate:

• Quadrant I and III: Gate and MT2 positive with respect to MT1.
• Quadrant II and IV: Gate and MT2 negative with respect to MT1.

Triggering in different quadrants affects sensitivity and device behavior, which must be considered in circuit design.

Characteristics and Ratings

Important TRIAC parameters include:

• Maximum repetitive peak off-state voltage: The maximum voltage TRIAC can block.
• RMS on-state current: The continuous current TRIAC can conduct safely.
• Gate trigger current: Current required to switch the TRIAC on.
• Critical rate of voltage rise (dv/dt): Maximum permissible rate of voltage change without false triggering.
• Holding current: Minimum current to keep the TRIAC conducting.

Applications in Kenya

TRIACs are common in Kenyan applications such as:

• Domestic lighting dimmers: Used in homes and hotels to adjust lighting levels.

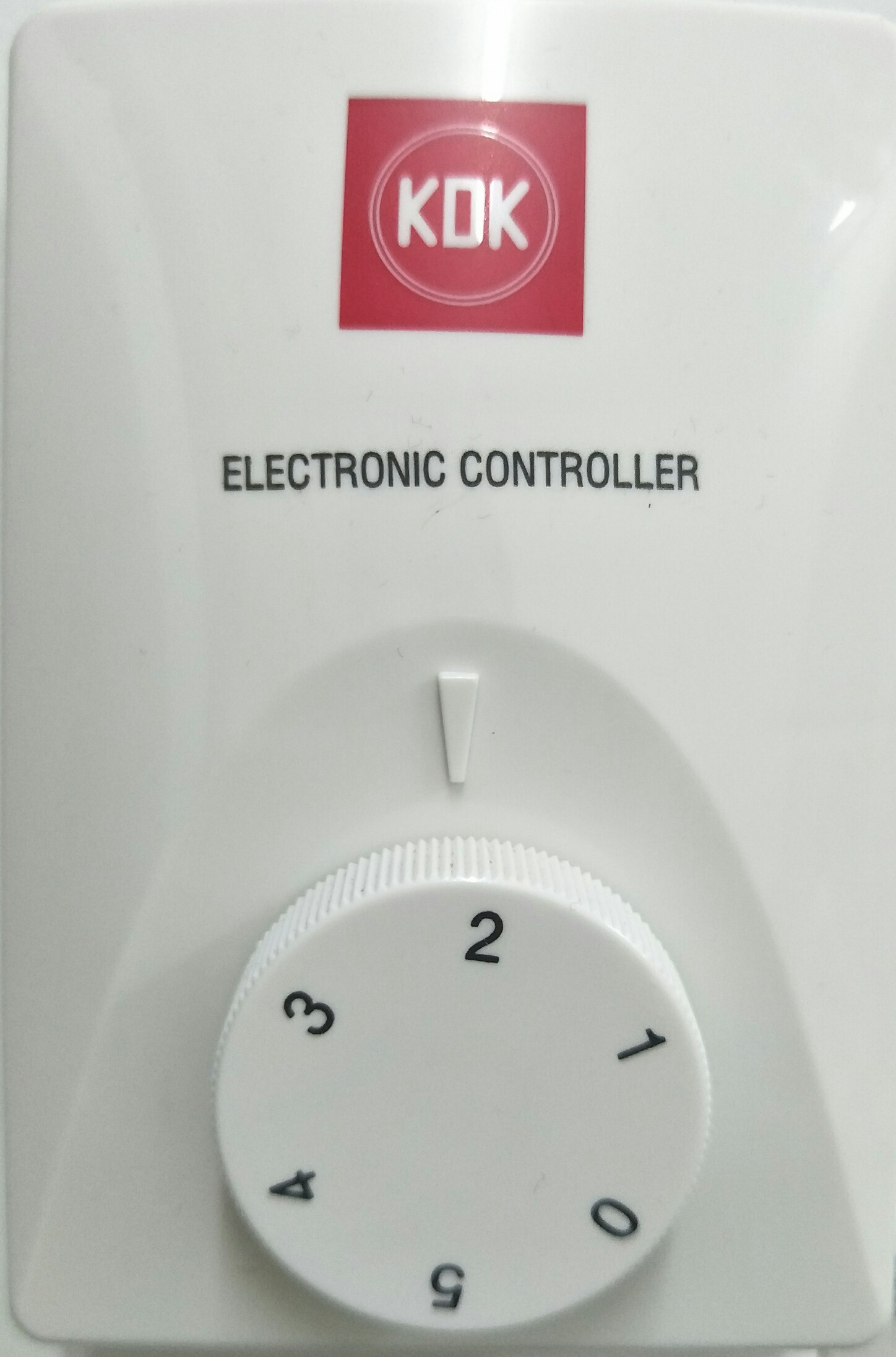

• Fan speed controllers: Restaurants and offices use TRIAC-based regulators for ceiling fans.

• Heater controls: Industrial bakeries employ TRIACs to regulate heating elements.

• Phase control in AC motors: SACCOs use TRIAC circuits in motor-driven equipment for efficiency.

• Power factor correction: Some renewable energy systems incorporate TRIACs for load control.

4.1.4 DIAC (Diode for Alternating Current)

The DIAC is a bidirectional trigger diode that conducts current only after its breakover voltage is reached, commonly used to trigger TRIACs. Kenyan engineers encounter DIACs in phase control circuits to provide predictable and symmetric triggering.

Structure and Operation

DIACs have a symmetrical PNPN structure without a gate terminal. They remain non-conductive until the voltage across them exceeds the breakover threshold, at which point they switch to a low-resistance state. Once conducting, they allow current to flow until the current falls below a holding value.

Electrical Characteristics

The DIAC exhibits:

• Breakover voltage: The voltage at which DIAC switches on, typically between 30V and 40V.
• Symmetrical conduction: It conducts equally in both directions, making it suitable for AC applications.
• Negative resistance region: After breakover, the voltage drops while current rises.
• No gate terminal: Triggering is voltage-dependent, unlike SCRs or TRIACs.
• Fast switching: DIACs respond quickly to voltage surges.

Ratings

UJT ratings are essential for selecting devices in Kenyan timing and triggering circuits:
- Emitter Breakdown Voltage (V_EBO): The maximum voltage between emitter and base before breakdown, typically 30V, suitable for use in irrigation controllers on commercial farms.
- Interbase Voltage (V_BB): The maximum voltage between base terminals, often 30V, important in university lab oscillators.
- Peak Emitter Current (I_EP): The maximum current the emitter can handle, such as 50mA in industrial pulse generators.
- Power Dissipation (P_D): The maximum power the UJT can safely dissipate, usually 300mW, ensuring reliability in hospital equipment.
- Operating Temperature Range: The device operates reliably from -55°C to +125°C, suitable for Kenyan field and laboratory conditions.

Ratings

DIAC ratings guide their use in Kenyan lighting and motor control circuits:
- Breakover Voltage (V_BO): The voltage at which the DIAC conducts, typically 30V–40V, suitable for use in hotel dimmer switches.
- Maximum Repetitive Peak Current (I_RM): The highest current the DIAC can repeatedly conduct, such as 2A in commercial fan speed controllers.
- Power Dissipation (P_D): The maximum power the DIAC can safely dissipate, usually 300mW, important for reliability in university electronics labs.
- Operating Temperature Range: Ensures proper function in environments from -40°C to +85°C, relevant for outdoor lighting in Kenyan public spaces.
- Capacitance: The inherent capacitance, typically 10pF, which can affect high-frequency operation in telecommunications equipment.

Role in Triggering TRIACs

DIACs provide controlled and symmetrical triggering pulses for TRIACs to ensure smooth phase angle control. This prevents erratic firing and reduces electrical noise in lighting and motor control circuits. Kenyan electronics technicians often use DIAC-TRIAC pairs in dimmer switches and speed regulators.

Practical Applications

Examples of DIAC use in Kenya include:

• Lighting dimmers: DIACs initiate TRIAC conduction for smooth brightness adjustment in hotels.

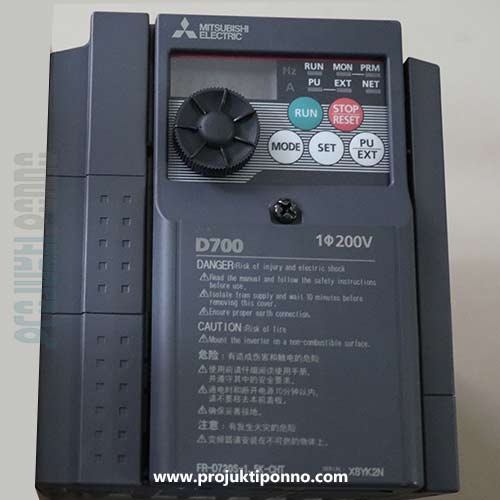

• Motor speed controllers: DIAC-triggered TRIACs regulate fans in office buildings.

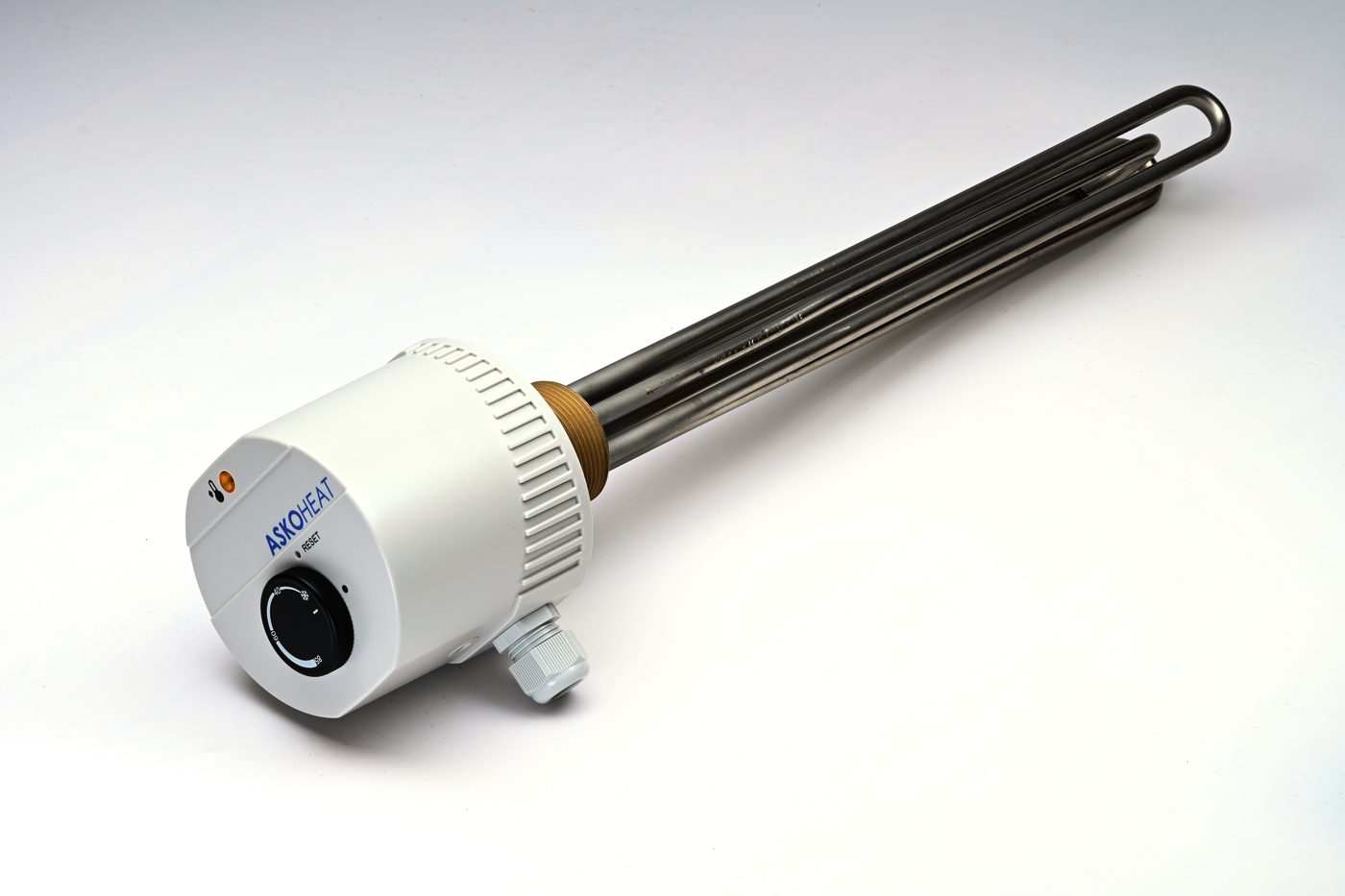

• Heater regulators: DIACs ensure precise phase control in industrial heating applications.

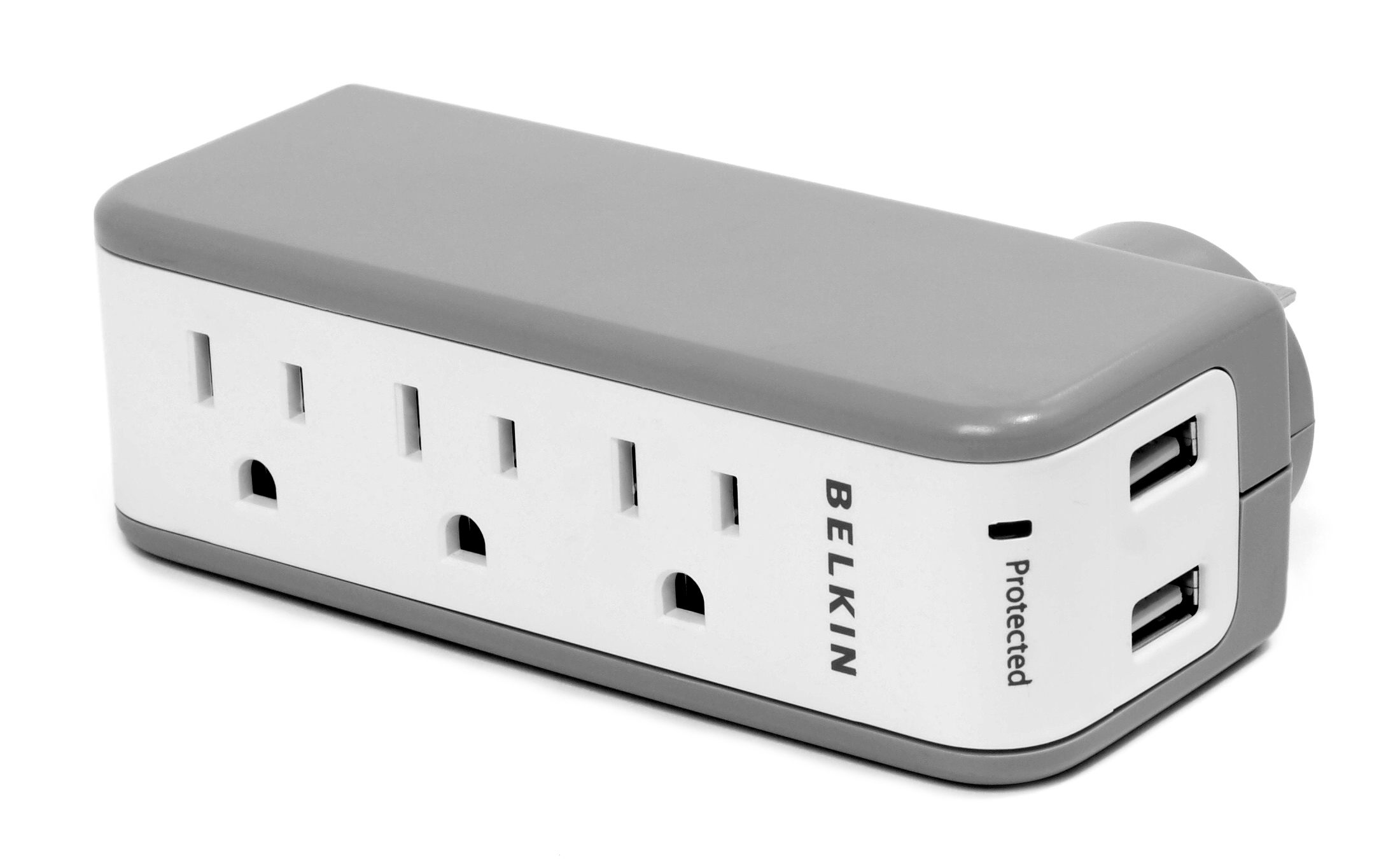

• Surge suppressors: DIACs help protect sensitive electronics from voltage spikes.

• Switching circuits: Used in pulse generation for timing circuits in universities’ electronics labs.

4.1.5 SCS (Silicon Controlled Switch)

The Silicon Controlled Switch (SCS) is a four-layer semiconductor device similar to an SCR but with two gate terminals allowing both turn-on and turn-off control. In Kenya, SCSs are used in circuits requiring controlled switching with the ability to latch and unlatch electronically.

Structure and Terminal Configuration

The SCS has a PNPN structure with five terminals: anode, cathode, and two gates, anode gate (GA) and cathode gate (GC). This dual-gate arrangement enables triggering to turn the device on or off, offering more control than an SCR.

Operating Modes

SCS operation involves:

• Turn-on mode: A positive pulse to the anode gate triggers conduction.
• Turn-off mode: A positive pulse to the cathode gate interrupts conduction.
• Latching behavior: Once on, the device remains conducting until turned off via the cathode gate or current interruption.
• Bidirectional control: The device can be switched on and off electronically without interrupting the load current.
• Holding current: The minimum current required to maintain conduction.

Applications in Kenya

The SCS’s ability to be turned off electronically makes it useful in:

• Electronic switching: County government offices use SCSs in electronically controlled relays.
• Phase control circuits: Universities use SCS devices in advanced power electronics labs.
• Pulse circuits: SCSs serve as switches in timing and gating circuits.
• Programmable controllers: Industrial plants implement SCSs in process automation.
• Inverter circuits: SCSs help control output waveform in power inverters.

Limitations and Design Considerations

SCS devices require careful gate drive design to avoid false triggering. High gate currents may damage the device, and thermal management is essential to prevent overheating. Kenyan engineers must ensure proper snubber circuits and protective measures in high-power applications.

4.1.6 UJT (Uni-Junction Transistor)

The Uni-Junction Transistor (UJT) is a three-terminal semiconductor device used primarily as a triggering device in timing and oscillator circuits. Kenyan electronics engineers utilize UJTs in pulse generation and phase control applications.

Construction and Working Principle

The UJT consists of a lightly doped N-type silicon bar with two ohmic contacts at each end and a P-type emitter junction. When a positive voltage is applied to the emitter, the device exhibits a negative resistance region due to the interaction between the emitter current and the resistive base. This property enables the UJT to generate sharp pulses.

Electrical Characteristics

Key features of the UJT include:

• Peak point voltage: The emitter voltage at which the device switches from high to low resistance.
• Valley point voltage: The minimum voltage after switching before returning to high resistance.
• Negative resistance region: Allows pulse generation and relaxation oscillations.
• High input impedance: Minimizes loading on preceding circuits.
• Simple triggering: Easily triggered with small voltage changes.

Applications in Kenya

UJTs are commonly applied in:

• Relaxation oscillators: Used in universities for timing circuit demonstrations.
• Trigger pulse generators: UJTs initiate SCRs and TRIACs in industrial controls.
• Sawtooth waveform generation: Used in signal processing circuits in telecommunications.
• Time delay circuits: County hospital equipment employs UJT-based timers.
• Pulse width modulation: UJTs help control power devices in energy management systems.

Limitations and Alternatives

Although useful, UJTs have been largely replaced by more versatile devices like microcontrollers and programmable ICs. However, their simplicity and reliability keep them relevant in educational settings and simple industrial applications.

Chapter Summary

This chapter examined various special semiconductor devices including the SCR, LASCR, TRIAC, DIAC, SCS, and UJT, detailing their unique structures and functions. It explored the operation principles underlying these devices, explaining how they control current flow and switching in electronic circuits. The chapter also presented the standard schematic symbols used to represent each device in circuit diagrams, facilitating clear communication in design and troubleshooting. Furthermore, it highlighted the practical applications of these semiconductor devices in controlling power, triggering circuits, and timing applications across different electronic systems. Understanding these devices is essential for designing and implementing efficient analogue electronic circuits. The knowledge gained supports the selection and application of appropriate devices in various engineering and industrial contexts. This comprehensive overview equips students with foundational skills to analyze and utilize special semiconductor components effectively.
