The design of reinforced concrete structures is a fundamental area in civil engineering that combines principles of material science, structural analysis, and construction technology. In Kenya, reinforced concrete forms the backbone of infrastructure development, from multi-storey buildings in Nairobi to bridges and public utilities in county governments. Mastery of this subject enables engineers to create safe, durable, and cost-effective structures that conform to local standards and environmental conditions. This chapter delves into the essential terms and concepts that underpin the design process of reinforced concrete structures.

1.1 Terms and Concepts

The technical vocabulary and foundational ideas in reinforced concrete design are critical for communicating design intent, ensuring compliance with standards such as the Kenya Building Code and BS EN 1992 (Eurocode 2), and for practical execution on construction sites. Understanding these terms helps engineers interpret design specifications, collaborate effectively with contractors, and maintain quality control during construction phases.

1.1.1 Designing

Designing in civil engineering is the systematic process of developing plans and specifications that ensure a structure meets functional, safety, and economic requirements. In Kenya, designing reinforced concrete structures involves not only applying theoretical principles but also adapting to local material availability, construction practices, and environmental conditions.

Purpose of Designing Reinforced Concrete Structures

• Safety Assurance: Ensures that structures can withstand anticipated loads such as dead loads, live loads, wind, and seismic forces without failure, protecting lives and property.
• Serviceability: Designs must guarantee that deflections, vibrations, and crack widths remain within acceptable limits to maintain usability and comfort.
• Durability: Proper design extends the lifespan of structures by accounting for environmental factors like corrosion, moisture, and chemical exposure common in Kenya’s diverse climates.
• Cost Efficiency: Optimizes material use and construction methods to reduce unnecessary expenses while maintaining quality standards.
• Compliance with Regulations: Aligns with national building codes and international standards to ensure legal approval and public trust.

Stages in the Design Process

• Conceptual Design: Establishing functional requirements, preliminary sizing, and selection of structural systems appropriate for the project context.
• Structural Analysis: Calculating internal forces and moments induced by applied loads using methods such as moment distribution or finite element analysis.
• Detailing: Specifying reinforcement layouts, concrete cover, and joint details to ensure constructability and performance.
• Documentation: Preparing drawings, specifications, and bills of quantities that contractors use during construction.
• Review and Verification: Conducting checks and peer reviews to validate design assumptions and calculations.

Factors Influencing Design Decisions

• Material Properties: Variability in cement quality, aggregate types, and steel reinforcement grade affects strength and durability.
• Load Characteristics: Consideration of static and dynamic loads including occupancy type and environmental loads such as wind or seismic activity.
• Construction Techniques: Availability of skilled labor and equipment influences choice of design complexity.
• Environmental Conditions: Exposure to aggressive agents like chlorides near coastal areas or acidic soils in agricultural zones requires special design considerations.

• Economic Constraints: Budget limitations may necessitate value engineering without compromising safety.

• Client Requirements: Specific needs of clients, such as the Ministry of Transport demanding higher durability for public bridges, can influence design priorities and material choices.

• Site Constraints: Physical limitations like restricted access in urban centers such as Mombasa CBD may dictate design approaches, including prefabrication or modular construction.

Role of Software in Design

Modern design often incorporates computer-aided tools such as SAP2000, ETABS, and AutoCAD Structural Detailing that enhance precision and efficiency. These tools enable complex load simulations, optimize reinforcement layouts, and generate detailed drawings, which are indispensable in large projects like commercial high-rises in Nairobi.

1.1.2 Reinforced Cement Concrete

Reinforced Cement Concrete (RCC) is a composite material where concrete's compressive strength is combined with steel reinforcement's tensile strength. It is the preferred construction material for most structural elements in Kenya due to its adaptability, strength, and durability.

Composition and Properties of RCC

• Concrete Matrix: Consists of cement, fine aggregates (sand), coarse aggregates (gravel or crushed stone), and water, forming a rigid mass upon curing.
• Steel Reinforcement: Typically high-yield deformed bars embedded within concrete to resist tensile and shear stresses.
• Bonding: Chemical and mechanical adhesion between steel and concrete ensures composite action under load.
• Durability: Proper mix design and cover protect reinforcement from corrosion and environmental degradation.
• Thermal Compatibility: Similar coefficients of thermal expansion between steel and concrete prevent internal stresses due to temperature changes.

Advantages of Using RCC in Kenya

• Versatility: Suitable for various structural elements including beams, columns, slabs, and foundations.
• Availability: Local production of cement and aggregates supports widespread use.
• Fire Resistance: RCC structures perform better than timber or steel-only structures under fire conditions.
• Low Maintenance: Long service life with minimal upkeep when correctly designed and constructed.
• Adaptability to Formwork: Can be cast into complex shapes to meet architectural and structural demands.

Limitations of RCC

• Weight: Heavier than alternative materials like steel or timber, requiring robust foundations.
• Cracking: Susceptible to shrinkage and thermal cracks if not properly cured or reinforced.
• Construction Time: Requires formwork erection, curing periods, and skilled labor, which can extend project timelines.
• Quality Control: Variations in material quality and workmanship can lead to structural deficiencies.

• Environmental Impact: Cement production contributes to CO2 emissions, necessitating sustainable practices.

• Construction Complexity: The need for precise placement of reinforcement and formwork increases the complexity of construction, requiring skilled labor which may not always be available in rural counties.

• Slow Strength Gain: Concrete requires adequate curing time to achieve full strength, which can delay project timelines, as experienced in road bridge projects managed by the Kenya Urban Roads Authority.
• Difficult Modifications: Once cast, RCC elements are difficult and costly to modify, limiting flexibility for future changes in use, such as in the conversion of old office blocks in Nairobi.

Types of RCC Elements Commonly Used

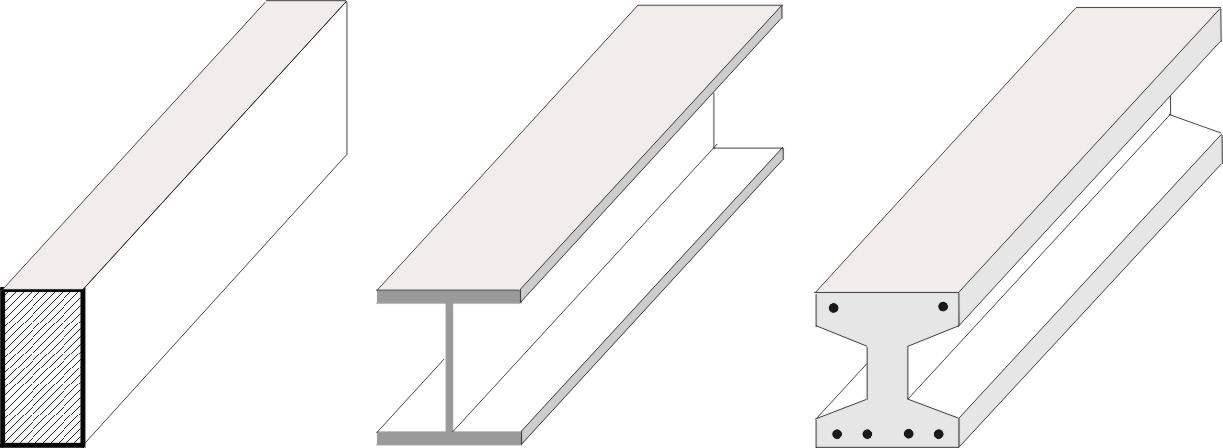

• Beams: Horizontal members that carry bending and shear forces.

• Columns: Vertical load-bearing elements transmitting loads to foundations.

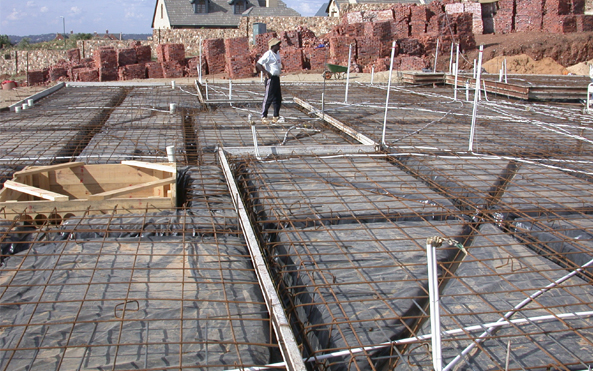

• Slabs: Flat plates supporting floor or roof loads.

• Foundations: Spread footings or pile caps distributing structural loads to the ground.

• Walls: Load-bearing or partition walls providing lateral support and enclosure.

1.1.3 Reinforcement

Reinforcement in concrete structures provides the tensile strength and ductility that plain concrete lacks. It is critical to understand the types, placement, and behavior of reinforcement to ensure structural integrity.

Types of Reinforcement Used in Kenya

• Mild Steel Bars: Low carbon steel bars used mainly for light reinforcement or in mass concrete.
• High Yield Steel Bars: Deformed bars with ribs for better bonding, used extensively in structural elements.

• Welded Wire Mesh: Prefabricated steel mesh used in slabs and walls for crack control.

• Prestressing Steel: High-strength strands or wires used in prestressed concrete elements.

• Fiber Reinforcement: Synthetic or steel fibers added to concrete mixes to improve toughness and crack resistance.

Functions of Reinforcement

• Tensile Strength Provision: Resists tensile forces where concrete is weak.
• Crack Control: Limits crack widths to maintain durability and aesthetics.
• Ductility Enhancement: Provides warning before failure through deformation.
• Shear Resistance: When used as stirrups, it resists diagonal shear forces.
• Anchorage and Bonding: Ensures load transfer between steel and concrete.

Placement and Detailing of Reinforcement

• Cover Requirements: Minimum concrete cover protects steel from corrosion and fire.
• Bar Spacing: Adequate spacing ensures proper concrete compaction and bond.
• Anchorage Length: Bars must extend sufficiently into concrete to develop full strength.
• Lap Splices: Overlapping bars to maintain continuity in long spans.

• Stirrups and Ties: Transverse reinforcement to resist shear and confine concrete.

• Bar Marking and Identification: Each reinforcement bar should be clearly marked and referenced in drawings to avoid confusion during construction, a practice enforced on large projects like the Standard Gauge Railway.

• Sequencing of Placement: The order in which reinforcement is placed affects the ease of construction and inspection, particularly in congested elements such as pile caps used in high-rise foundations in Westlands, Nairobi.

Common Challenges in Reinforcement Work

• Corrosion Risks: Exposure to moisture and chlorides can cause rusting, weakening steel.
• Improper Placement: Misalignment or insufficient cover reduces structural performance.
• Quality of Steel: Use of substandard bars compromises strength.
• Cutting and Bending Errors: Can lead to incorrect bar shapes and lengths.
• Inspection and Supervision: Lack of rigorous oversight can allow defects to pass unnoticed.

1.1.4 Design Philosophy

The design philosophy underpins the approach taken to ensure safety, reliability, and economy in reinforced concrete structures. It frames the principles and assumptions guiding calculations and detailing.

Limit State Design Concept

• Ultimate Limit State (ULS): Ensures structure can resist maximum loads without collapse or loss of equilibrium.
• Serviceability Limit State (SLS): Ensures structure remains functional and comfortable, controlling deflections and cracks.
• Partial Safety Factors: Applied to loads and material strengths to account for uncertainties.
• Load Combinations: Various load scenarios considered to cover all possible conditions.
• Reliability: Design ensures acceptable probability of failure is extremely low.

Working Stress Design vs Limit State Design

• Working Stress Design: Based on elastic behavior, uses allowable stresses; less common in Kenya due to conservatism.
• Limit State Design: Considers nonlinear behavior and ultimate capacities; currently the standard in Kenya.
• Material Utilization: Limit state design allows more efficient use of materials.
• Safety Margins: Limit state design incorporates explicit safety factors.
• Applicability: Limit state design better accommodates modern construction materials and techniques.

Factors Influencing Design Philosophy Selection

• Code Requirements: Kenya’s adoption of Eurocode 2 promotes limit state design.
• Project Type and Complexity: Complex structures benefit from limit state design’s flexibility.
• Material Properties: Variability in materials may necessitate conservative approaches.
• Experience and Expertise: Availability of skilled engineers familiar with design methods.
• Economic Considerations: Efficient design philosophy can reduce material costs.

Importance of Sustainability in Design Philosophy

• Material Efficiency: Designs that minimize waste and optimize resource use.
• Durability: Ensuring long service life reduces need for repairs and replacements.
• Environmental Impact: Incorporating recycled materials and low-carbon cements.
• Energy Efficiency: Designing for thermal performance reduces operational energy.
• Adaptability: Structures designed for future modifications extend usability.

Chapter Summary

This chapter explored the fundamental terms and concepts essential to the design of reinforced concrete structures, including the meaning of designing, the properties of reinforced cement concrete, the role of reinforcement, and various design philosophies. It highlighted the key design resources necessary for effective structural planning and detailed the application of British Standards BS 8110 for reinforced concrete and BS 6399 for loads. The use of these standards was explained in the context of ensuring safety and compliance in structural design. The chapter then focused on the design of concrete structures by introducing loading and design analysis principles, followed by detailed discussions on beam design addressing bending, shear, and deflection. Slab design was covered with emphasis on one-way and two-way spanning slabs, reinforcement requirements, and critical stresses. Column design considerations included short and slender columns, failure modes, and buckling effects, while foundation design addressed loading, critical bending and shear stresses, and reinforcement detailing. Finally, the preparation of working drawings for structural members and the relevance of current building standards such as the Eurocodes were discussed to provide a comprehensive framework for modern reinforced concrete design.
