6.1 Construction materials, tools and equipment assembly

6.1.1 Construction Materials

Construction materials are the physical substances used to build infrastructure. These materials vary widely in properties, uses, and sources, and their selection impacts the durability, cost, and sustainability of civil engineering projects. In Kenya, where climatic conditions and local availability influence material choice, understanding these materials’ characteristics is vital for engineers to design structures that withstand environmental stresses.

Types of Construction Materials

The diversity of construction materials covers natural, manufactured, and composite types. Natural materials such as stone and timber are sourced directly from the environment, while manufactured materials like cement and steel undergo industrial processing. Composite materials combine two or more substances to enhance performance.

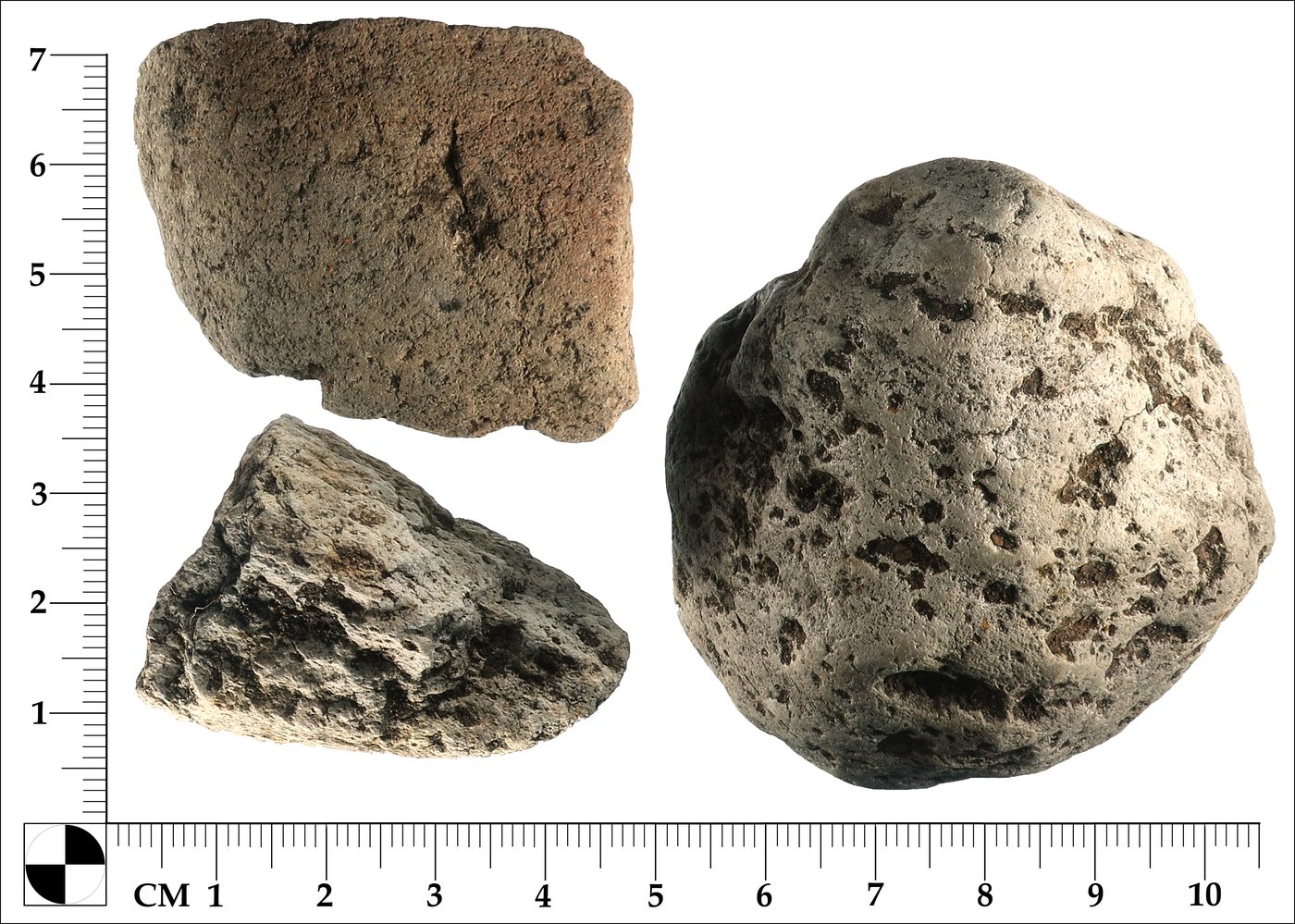

• Natural Stones: Granite and basalt are commonly used due to their hardness and durability, especially in foundations and road aggregates.

• Timber: Sourced mainly from local plantations, timber is used for formwork, scaffolding, and roofing frames.

• Cement: Ordinary Portland Cement (OPC) is widely utilized as a binder in concrete, vital for structural strength.

• Steel: Reinforcement bars (rebar) provide tensile strength to concrete, essential for beams and columns.

• Bricks: Manufactured from clay, bricks are used in wall construction, offering good compressive strength and thermal insulation.

Properties Affecting Material Selection

Material selection is influenced by several physical and chemical properties that determine suitability for specific applications.

• Strength: Materials must withstand loads without failure; for example, concrete compressive strength is critical in load-bearing elements.
• Durability: Resistance to weathering, corrosion, and chemical attack ensures longevity; steel must be treated to prevent rust in Kenya’s humid coastal regions.
• Workability: Ease of cutting, shaping, and joining affects construction speed and precision.
• Thermal Conductivity: Materials with low thermal conductivity improve energy efficiency in buildings.
• Cost and Availability: Locally sourced materials reduce project costs and support the Kenyan economy.

Standards and Quality Control

Compliance with Kenyan standards, such as those set by the Kenya Bureau of Standards (KEBS), ensures materials meet minimum quality requirements. Quality control involves material testing at various stages:

• Sampling: Representative samples are collected from suppliers or site deliveries.
• Laboratory Testing: Includes compressive strength tests for concrete cubes and tensile tests for steel.
• On-site Inspection: Visual and dimensional checks verify conformity to specifications.
• Certification: Materials come with KEBS certification indicating compliance.

Sustainable and Innovative Materials

Sustainability in construction encourages the use of environmentally friendly materials to reduce carbon footprint and resource depletion.

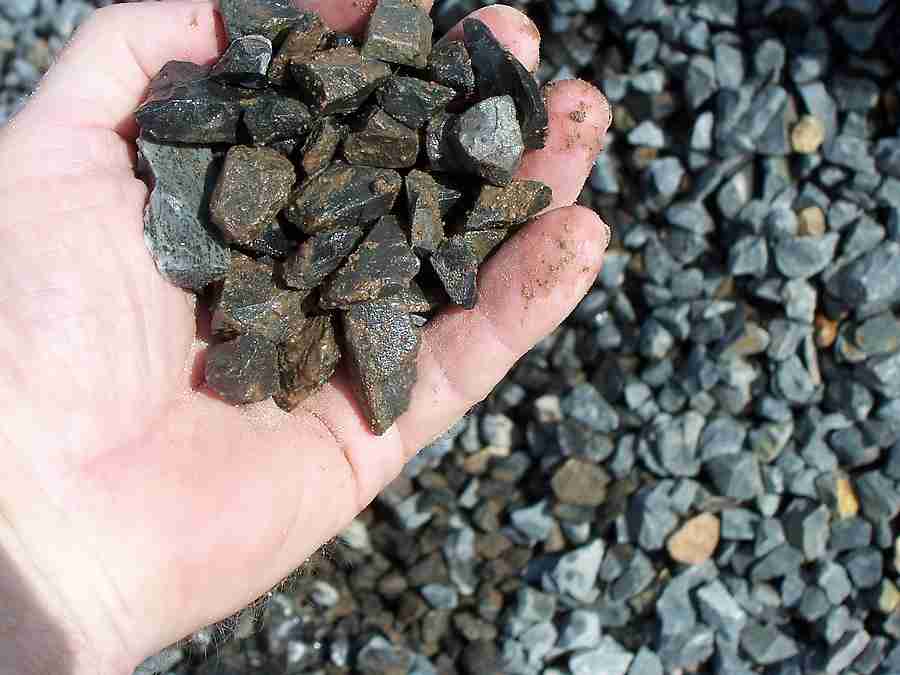

• Recycled Aggregates: Crushed concrete and brick waste reused as aggregates reduce landfill.

• Fly Ash Cement: Incorporating fly ash, a byproduct from coal power plants, improves concrete durability.

• Stabilized Soil Blocks: Locally produced soil blocks stabilized with cement offer affordable alternatives to fired bricks.

• Bamboo: Emerging as a renewable material for scaffolding and light structures.

• Geopolymers: Experimental materials using industrial byproducts to replace cement partially, reducing CO2 emissions.

6.1.2 Construction Tools

Construction tools are hand-held or small mechanical devices essential for executing tasks such as measuring, cutting, shaping, and joining materials. Their correct use enhances workmanship quality and safety on Kenyan construction sites.

Classification of Construction Tools

Tools are classified based on their function and power source, with common categories on Kenyan sites including:

• Measuring Tools: Tape measures, spirit levels, and theodolites for precise layout and alignment.
• Cutting Tools: Handsaws, bolt cutters, and angle grinders used to cut timber, metal, and masonry.

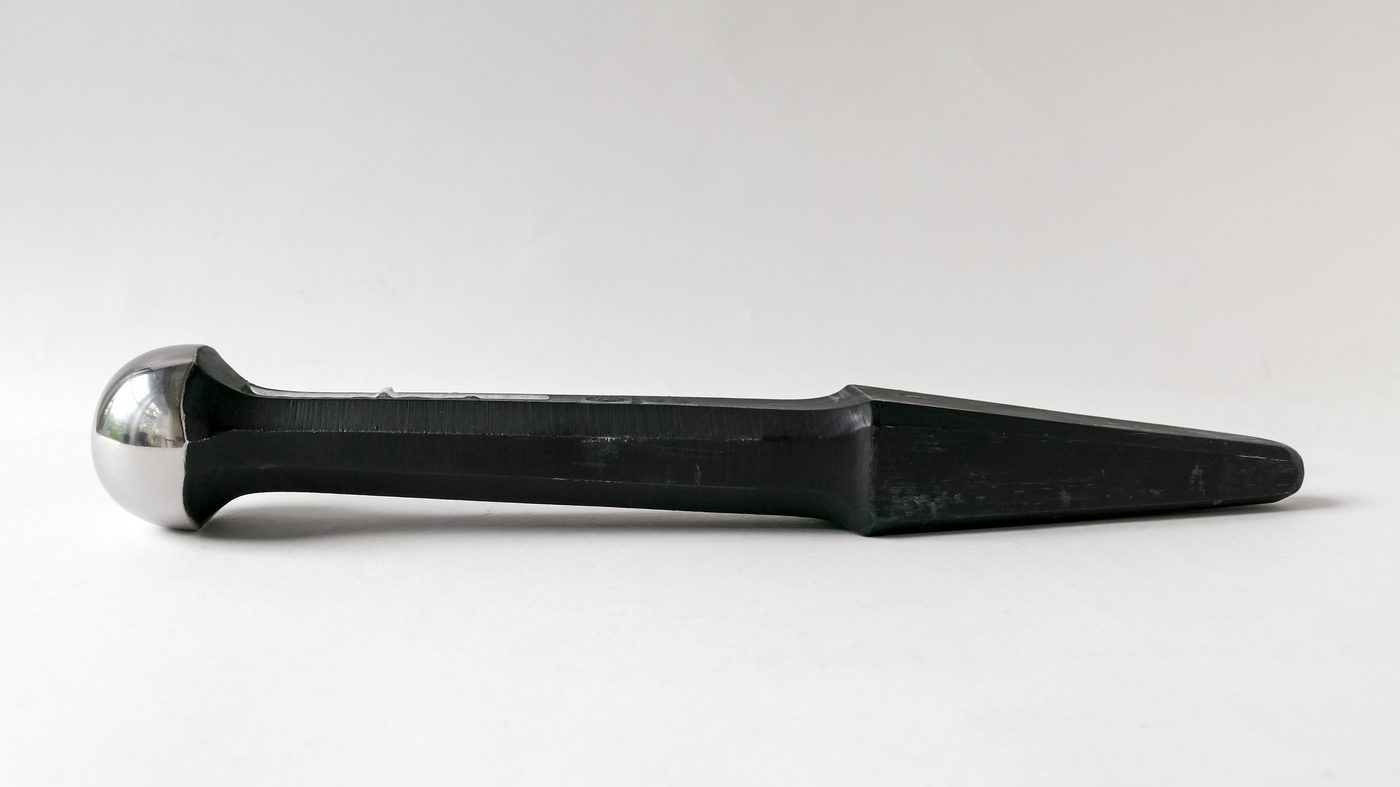

• Shaping Tools: Hammers, chisels, and trowels employed to shape or finish materials.

• Fastening Tools: Screwdrivers, pliers, and wrenches for assembling components.

• Power Tools: Electric drills and nail guns increase efficiency for repetitive tasks.

Specifications and Maintenance

Proper maintenance includes cleaning tools after use, lubricating moving parts, and safe storage to prevent damage and accidents. For example, angle grinder discs must be inspected for cracks before use to avoid dangerous failures.

Safety Considerations in Tool Use

Kenyan construction sites enforce strict safety protocols to mitigate risks associated with tool use:

• Use of personal protective equipment (PPE) such as gloves and goggles.
• Regular training on tool handling and hazard awareness.
• Ensuring tools are in good working order and compliant with safety standards.
• Avoiding makeshift repairs that compromise tool integrity.

Ergonomics and Efficiency

Ergonomic tool design reduces worker fatigue and injury risks, improving productivity. Tools with cushioned grips and balanced weight are preferred. For example, in a Nairobi hotel construction project, workers reported increased efficiency using electric drills with ergonomic handles compared to traditional hand drills.

6.1.3 Construction Equipment

Construction equipment refers to heavy or specialized machinery that performs large-scale tasks such as excavation, lifting, and material handling. Their deployment on Kenyan sites enhances speed and safety but requires skilled operation and maintenance.

Types of Construction Equipment

Equipment varies by function and scale, including:

• Excavators: Used for digging foundations and trenches.

• Cranes: Facilitate lifting heavy materials to elevated positions.

• Concrete Mixers: Ensure uniform mixing of concrete batches.

• Compactors: Used in soil and asphalt compaction to achieve required density.

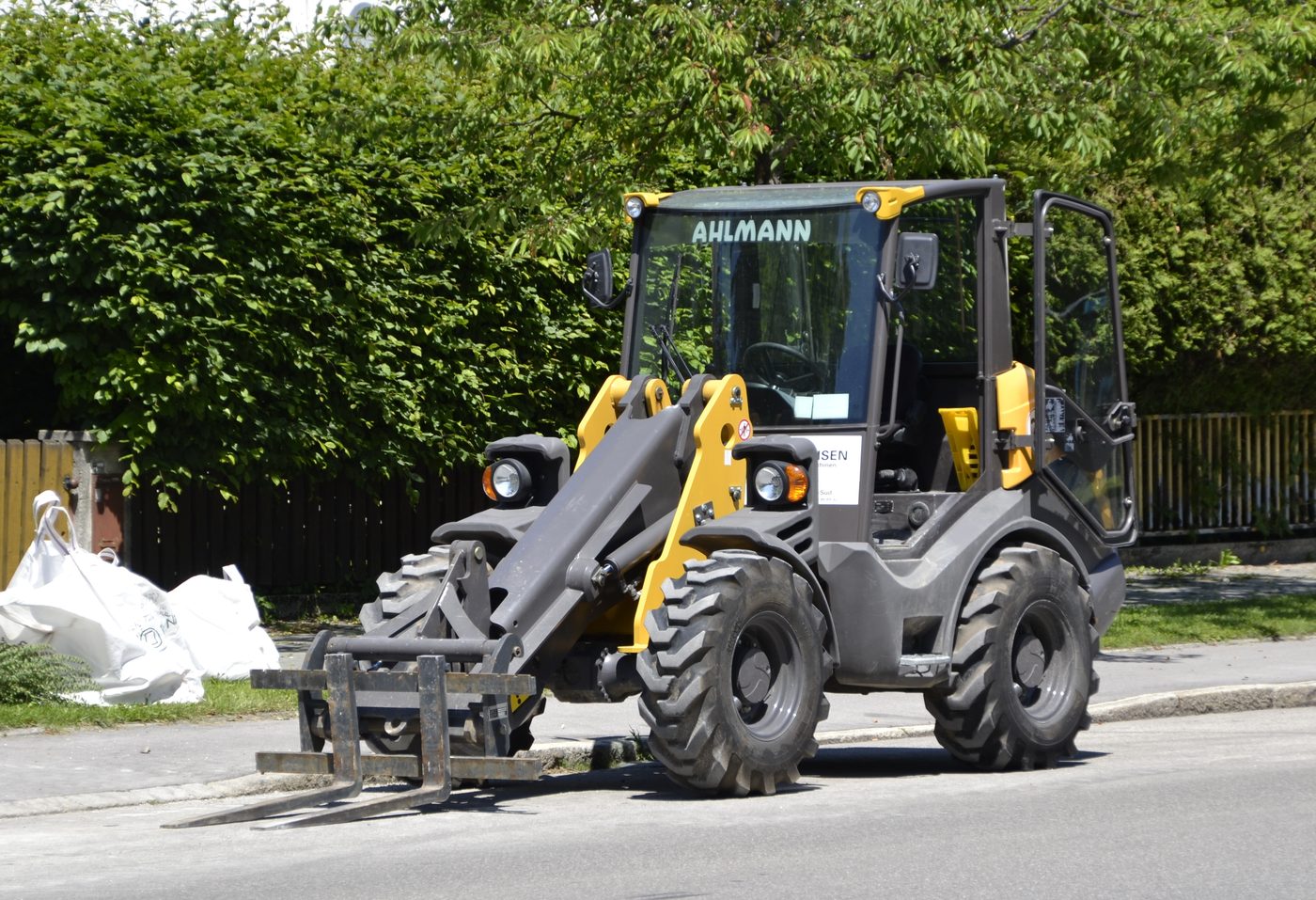

• Loaders: Transport materials around site efficiently.

Equipment Specifications and Uses

Operators must be certified and trained to handle these machines safely and efficiently. For instance, compactors used in road construction in Mombasa require calibration to meet specified compaction levels.

Maintenance and Inspection Procedures

Routine maintenance extends equipment life and prevents breakdowns:

• Daily inspection of hydraulic systems for leaks.
• Checking and topping up fuel, oil, and coolant levels.
• Cleaning air filters and replacing worn parts.
• Lubricating moving joints and bearings.
• Scheduling periodic servicing according to manufacturer guidelines.

Environmental and Safety Considerations

Equipment use impacts the environment and site safety:

• Emissions from diesel engines contribute to air pollution; use of low-emission engines is encouraged.
• Noise pollution control measures, such as mufflers and restricted operating hours, protect workers and nearby communities.
• Safety barriers and signage prevent unauthorized access to operating zones.
• Emergency shut-off systems reduce accident severity.

6.1.4 Assembly Techniques

Assembly techniques in construction refer to the methods and processes used to join materials and components to form a stable structure. Proper assembly ensures structural integrity, compliance with design specifications, and safety.

Mechanical Fastening Methods

Mechanical fastening involves joining materials using hardware such as nails, screws, bolts, and rivets.

• Nails are widely used for timber framing and formwork due to their ease of application.
• Bolts provide strong connections in steel structures, allowing disassembly if needed.
• Screws offer better holding power than nails, often used in finishing works.
• Rivets, though less common, are used in specialized metal connections.
• Fastener selection depends on material type, load requirements, and environmental factors such as corrosion potential.

Welding and Adhesive Bonding

Welding fuses metal components through heat, creating strong, permanent joints essential in steel reinforcement and structural steelwork.

• Common welding types include arc welding and MIG welding.
• Proper welding requires skilled operators and quality control to avoid defects like cracks or weak joints.
• Adhesive bonding uses chemical adhesives to join materials such as wood, composites, and some metals.
• Epoxy resins and polyurethane adhesives provide high strength and durability.
• Adhesive bonding is advantageous where heat could damage materials or where joints need to remain flexible.

Masonry and Concrete Assembly Techniques

Masonry assembly involves laying bricks, blocks, or stones in mortar to form walls and structures.

• Proper jointing techniques ensure load distribution and weatherproofing.
• Mortar composition and curing affect bond strength.
• Reinforced concrete assembly requires placing steel reinforcement correctly before concrete pouring.
• Formwork assembly must be sturdy and accurately aligned to shape concrete elements.
• Vibration during concrete pouring eliminates air pockets, enhancing strength.

Quality Control in Assembly

Ensuring quality during assembly prevents structural failures and costly repairs.

• Regular inspections verify alignment, level, and plumbness of assembled components.
• Non-destructive testing methods like ultrasonic testing detect weld defects.
• Monitoring curing times and environmental conditions during concrete setting.
• Documentation of assembly procedures and deviations.
• Training workers on best practices and standards compliance.

Chapter Summary

This chapter provided a comprehensive overview of construction materials, tools, and equipment, detailing their types and the techniques used for effective assembly. It examined the preparation processes for key materials such as concrete, glass, wood, steel, and ceramic tiles, emphasizing the importance of proper handling to ensure quality outcomes. The chapter highlighted best practices for the storage and organization of construction materials to maintain their integrity and accessibility on site. The construction process was explored in depth, covering stages from site preparation and foundation laying to structural framework, flooring, walls, roofing, and finishing works including doors, windows, and exterior and interior finishes. Specialized systems such as plumbing, electrical installations, HVAC, insulation, and landscaping were also addressed to demonstrate the integration of building services. Finally, the chapter discussed the specific uses of various construction materials, including concrete, steel, timber, bricks, glass, ceramic tiles, asphalt, aggregates, and PVC, illustrating their roles in structural support, aesthetics, and functionality within building projects.
