Set-out building is a critical preliminary stage in masonry works where the foundation for accurate construction is established. In Kenya, whether constructing a county government office in Kisumu or expanding a university lecture hall in Eldoret, precise set-out ensures the building’s dimensions and layout conform to design specifications. This stage demands the use of proper personal protective equipment and specialized tools to safeguard workers and guarantee measurement accuracy. Mastery of these essentials promotes efficiency and safety across diverse sectors such as healthcare facilities, retail outlets, and agricultural warehouses.

2.1 PPEs

2.1.1 Types of PPE

Understanding the various types of PPE used in masonry set-out is fundamental for effective protection. Each type has specific features tailored to particular risks encountered during site layout.

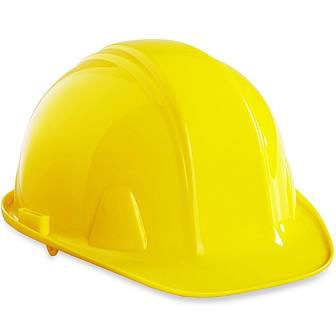

Head Protection

Hard hats or helmets protect workers from head injuries caused by falling objects or accidental impacts with set-out tools. For example, workers laying out foundations at a county government office in Nakuru rely on helmets to prevent serious injury from overhead hazards.

Eye Protection

Safety goggles or glasses shield the eyes from dust, cement particles, and flying debris generated during marking and measuring activities. At a retail business construction site in Nairobi, eye protection is crucial to prevent irritation and long-term damage.

Hand Protection

Gloves made from materials such as leather or rubber protect hands from cuts, abrasions, and chemical exposure. Workers setting out foundations at a university campus in Kisii use gloves to maintain grip and avoid injuries from sharp tools.

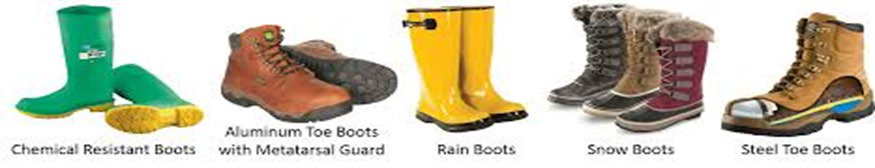

Foot Protection

Steel-toed boots provide resistance against heavy objects dropping on feet and prevent slips on uneven or wet surfaces. In agricultural warehouse construction in Eldoret, proper footwear is essential for navigating rough terrain safely.

Respiratory Protection

Dust masks or respirators guard against inhalation of fine dust particles during layout marking, which may contain silica or other hazardous materials. For instance, workers at a hotel site in Mombasa wear masks when marking out in dusty conditions.

2.1.2 Uses of PPE

The effective use of PPE reduces the incidence of occupational injuries and promotes compliance with safety regulations.

Prevention of Physical Injuries

Protection Against Environmental Hazards

Exposure to sun, dust, and chemicals is common on construction sites. PPE such as hats, masks, and sunscreen protect workers from heatstroke and respiratory issues, as seen in county hospital expansions in Nakuru.

Compliance with Safety Standards

Using PPE aligns with Kenya’s Occupational Safety and Health Act requirements, protecting both workers and employers from legal consequences. For example, county government offices enforce PPE compliance to avoid penalties and ensure worker welfare.

Enhancing Worker Confidence and Productivity

Knowing they are protected encourages workers to perform tasks efficiently without fear of injury. At a retail chain store construction in Nairobi, staff wearing appropriate PPE demonstrate higher morale and focus.

Reducing Absenteeism and Medical Costs

Proper PPE use minimizes workplace accidents, leading to fewer days lost and reduced medical expenses for organizations such as universities expanding their infrastructure in Kisii.

Chapter Summary

This chapter begins by examining personal protective equipment, detailing various types and their specific uses to ensure safety during masonry works. It then explores the essential setting out tools and equipment, highlighting their different forms and practical applications on site. The chapter proceeds to explain key setting out methods, including the 3-4-5 technique and the use of the builder's square for accurate layout. Profiling is covered with a focus on the role and setup of profile boards in marking building outlines. The process of levelling is addressed through the concept of surface levelling to establish a true horizontal reference. Techniques for transferring measurements accurately to the ground are also discussed to maintain precision. Proper maintenance and storage of setting out tools according to manufacturer guidelines are emphasized to preserve their functionality. Finally, the chapter covers the procedures for over site excavation, underscoring the importance of following standard operating procedures to prepare the foundation area correctly.
